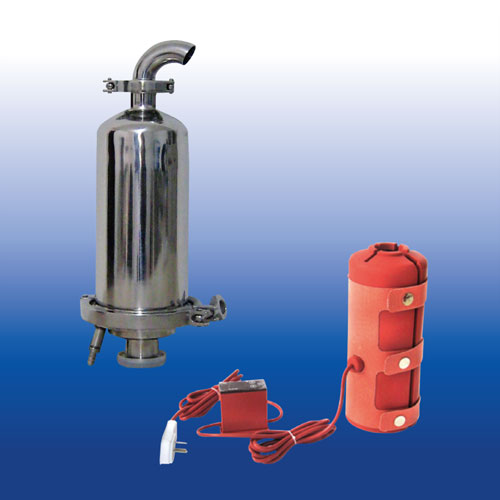

EH series of filter housing heaters are composed of a stainless steel respirator, thermal insulation jacket, and temperature control cabinet, to prevent condensed water from being formed within a sterile vent filter and affect exhaustion. EH series heaters are designed to meet GMP requirements and are widely used in biological products, pharmaceuticals, fermentation, and other water industries for injection systems, filtration and purification processes, and tanks and containers of respirators.
Features
- Effectively prevent condensation
- Advanced electric heating technology
- Safe and reliable to use, the temperature can be adjusted to 0-150℃, built-in overtemperature alarm
- Positioned as needed stainless steel control boxes, not limited to the specific location of the respirator or container
- Meet the requirements of GMP
- Silicone insulation inside-Safe to touch
Applications
- For the connection between the sterile vent port and process filter housing
- Biologicals, Pharmacy, Fermentation, WFI system, Product Recovery, Filtration and Purification Processes
Specifications
| Surface Finish | |
| Finish Processing Options | Electropolished, Mech. Polished |
| Polish Quality | Internal: Ra ≤ 0.3μm, External: Ra ≤ 0.4μm |
| Materials | |
| Shell Options | 304, 316L |
| Tri-Clamp | 304 |
| Seal Materials | Silicone, EPDM, FKM |
| Operating Conditions | |
| Design Pressure Options | 0.6Mpa(6bar), 1.0Mpa(10bar) |
| Max. Operating Temperature | 100℃ |
| Connection | |
| Shell Connection | Tri-clamp |
| Inlet, Outlet | Tri-clamp or Flange |
| Performance | |
| Rated Voltage | 220V |
| Withstand Voltage | 1.5kv |
| Insulation Resistance | ＞5MΩ |
| Insulating Material | Silicone |
| Ambient Range | -60℃—+250℃ |
| Adjustment Range | 0-150℃ |
| Thermostat Display Mode | Heating Temperature-Red LED Set Temperature-Green LED |
Dimensions (mm)
Order Information
