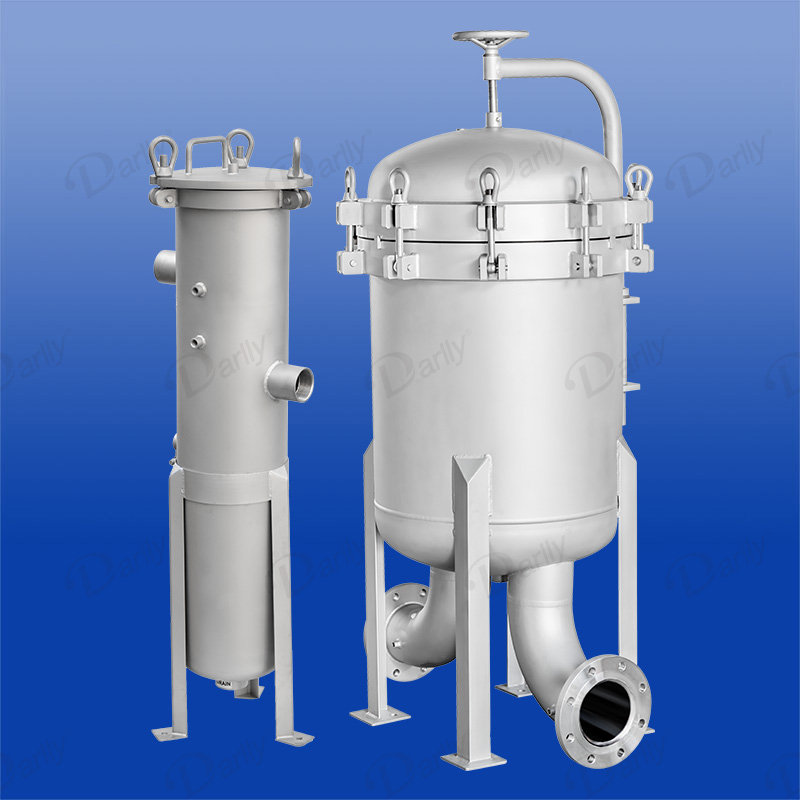

Manufactured of 304 or316L stainless steel for high-purity industrial filtration requirements. Single-bag housings accept standard Size #1 or Size #2 bag. Multi-bag housings accept 2, 3, 4, 6, 8, or 12 Size #2 bags. Multiple options for porting type and size. Provided standard with upstream & downstream gauge ports and lid-mounted vent port.
▎Features
Rugged swing-bolt closure allows easy access for bag change-out
Adjustable leg assembly on single-bag models offers installation flexibility
150 psi (10 bar) operating pressure rating
Designs adhere to requirements of the ASME Pressure Vessel Code
“U” Code stamping options are available
Can provide flow rates up to 1,200 GPM
Surface passivation reduces potential for weld line corrosion
▎Applications
Suitable for the broadest range of industrial applications from process fluid streams for water, aqueous solutions, oils, and fine chemicals
Used in food and beverage production: filtration of juices, syrups, food ingredients, and bottled water
▎Materials of Construction
Shell Components
304 or 316L Stainless Steel
Seal Options
EPDM (standard), SILICONE, NBR, FKM
▎Operating Conditions
Operating Temperature
121°C (250°F) max.
Design Pressure
10 bar (150 psi)
▎Surface Finish
Surface Quality
Glass beaded finish is standard Industrial electropolish is optional
▎Product Quality
Manufactured within an ISO 9001:2015 certified quality management system
Certified to NSF/ANSI-61 and 372
Halal certified
Certification of Quality document can be provided upon request
