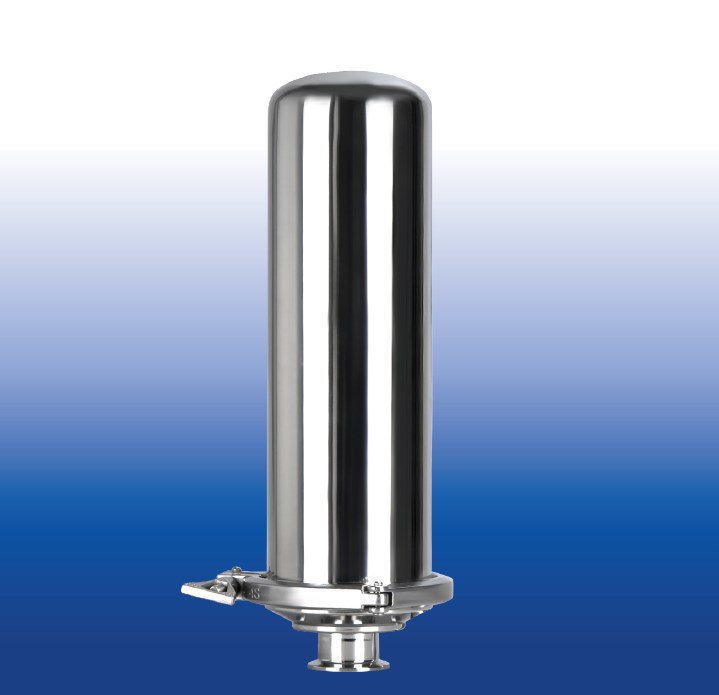

Sanitary Vent Filter Housings are comply with sanitary vessel design requirements. Suitable for gas sterilization filtration in the pharmaceutical and food industries. The top elbow is intended to prevent large particles and debris from entering the housing.
▎Features
- Ultra-high degree of polishing:
- Internal: Ra ≤0.3µm(12μin)
- External: Ra≤0.4μm (16μin)
- Complies with GMP standards
- Excellent cleanability
- Design prevents accumulation of liquid
- Top elbow prevents external particles and debris from entering the housing
- The vent filter housings are available in single-opening A and top elbow B model, compatible with cartridge connection for 222 and 226
▎Applications
- Allows sterile filtration of vented gas flow in the production and storage of
- Pharmaceutical and bio-technology products
- Fermentation process products
- Food, beverages, potable water
▎Materials of Construction
| Shell Components |
304 or 316L Stainless Steel |
| Seal Options |
SILICONE, EPDM, FKM, NBR |
▎Operating Conditions
| Operating Temperature |
150°C (302°F) max. |
| Design Pressure |
10 bar (150 psi) |
▎Surface Finish
| Surface Quality |
Internal: Ra ≤0.3µm(12μin)
External: Ra≤0.4pm (16μin) |
| Finish, internal |
Mechanical Polishing, Electropolishing |
| Finish, external |
Mechanical Polishing, Electropolishing |
▎Product Quality
- Manufactured within an ISO 9001:2015 certified quality management system
- Halal certified
- Certification of Quality document can be provided upon request
