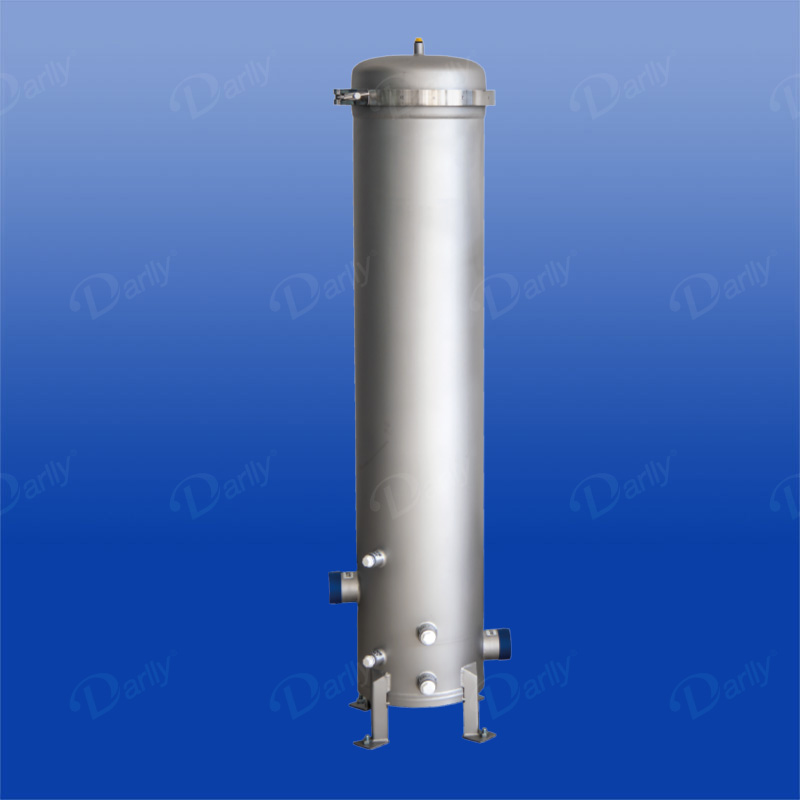

Manufactured of 304 or 316L stainless steel for high-purity industrial filtration requirements. The flexible design accommodates DOE, 222/FIN and 222/FLAT style cartridges. They acceptstandard 2.5” to 2.75″OD filter cartridges in configurations of up to 21-around and up to 40″ cartridge length. This housing series offers a great many options for cartridge quantity, flow rate capacity, and porting size. They’re a standard choice to support higher flow rate applications with abundant options for cartridge media types and retention ratings.
▎Features
The band clamp closure offers ease of access to cartridges for quick change-out
Simplified design provides better economy versus swing bolt styles
Welded legs provide a stable and durable installation
150 psi (10 bar) operating pressure rating
Can provide flow rates to 400 GPM and beyond
Surface passivation reduces potential for weld line corrosion
▎Applications
Suitable for the broadest range of industrial applications from process fluid streams for water, aqueous solutions, oils, and fine chemicals
Used in food and beverage production: filtration of juices, syrups, food ingredients, and bottled water
▎Materials of Construction
Shell Components
304 or 316L Stainless Steel
Seal Options
EPDM (standard), SILCONE, NBR, FKM
▎Operating Conditions
Operating Temperature
121°C (250°F) max.
Design Pressure
10 bar (150 psi)
▎Surface Finish
Surface Quality
Glass beaded finish is standard Industrial electropolish is optional
▎Product Quality
Manufactured within an ISO 9001:2015 certified quality management system
Certified to NSF/ANSI-61 and 372
Halal certified
Certification of Quality document can be provided upon request
