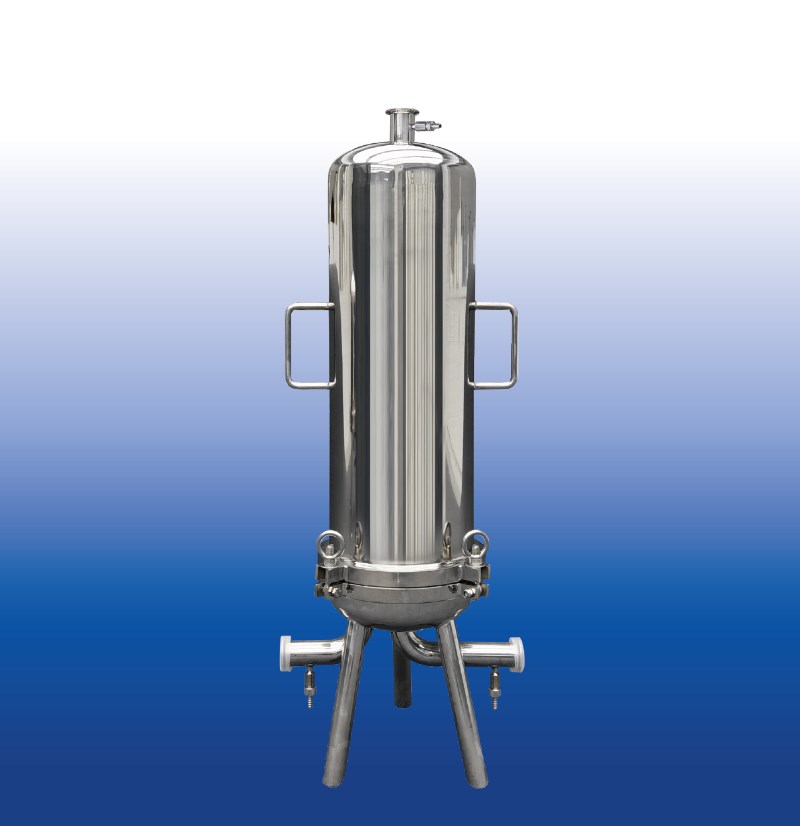

Manufactured of 304 or 316L stainless steel with an extraordinary degree of surface polish. The sanitary design includes TC-type fittings and offers smooth, crevice-free surfaces. Easy to disassemble and presents the ultimate in cleanability. Accept standard 2.5” to 3”OD filter cartridges.
These are the standard choice in higher flow rate applications in the pharmaceutical, bio-technology, and food & beverage industries.
▎Features
- Ultra-high degree of polishing:
- Internal: Ra ≤0.3µm(12µin)
- External: Ra≤0.4µm (16µin)
- Highest degree of cleanability
- Strengthened closure allows 150 psi (10 bar) operation
- Heavy-duty legs provide stability and ruggedness
- Suitable for Clean-in-Place and Steam-in-Place processes
- Design allows for thorough drainage
- Standard 1/2″TC flange tee ports allow connection of drains, sample ports, or gauges
▎Applications
- Pharmaceuticals: filtration of injectables, LVPs, water for injection, antibiotics, and other biological products
- Food and beverage: filtration of beer, wine, distilled spirits, juices, syrups
- Ultra-high purity water for micro-electronics production
▎Materials of Construction
| Shell Components | 304 or 316L Stainless Steel |
| Seal Options | SILICONE, EPDM, FKM, NBR |
▎Operating Conditions
| Operating Temperature | 150°C (302°F) max. |
| Design Pressure | 10 bar (150 psi) |
▎Surface Finish
| Surface Quality | Internal: Ra ≤0.3µm(12µin)
External: Ra≤0.4µm (16µin) |
| Finish, internal | Mechanical Polishing, Electropolishing |
| Finish, external | Mechanical Polishing, Electropolishing |
▎Product Quality
- Manufactured within an ISO 9001:2015 certified quality management system
- Certified to NSF/ANSI-61 and 372
- Halal certified
- Certification of Quality document can be provided upon request
Dimensions (mm)
Order Information
