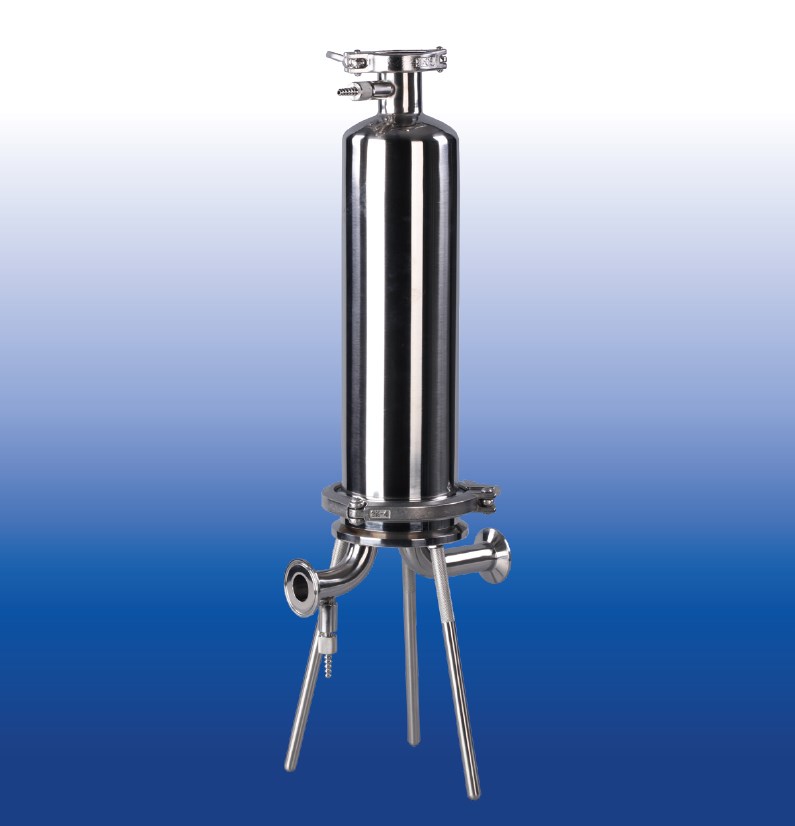

Manufactured of 304 or 316L stainless steel with an extraordinary degree of surface polish. The sanitary design includes TC-type fittings and offers smooth, crevice-free surfaces. Easy to disassemble and presents the ultimate in cleanability. Accept standard 2.5” to 3”OD filter cartridges.
These are the standard choice in laboratory or low-flow rate usage in the pharmaceutical, bio-technology, and food & beverage industries.
▎Features
- Ultra-high degree of polishing:
- Internal: Ra ≤0.3µm(12µin)
- External: Ra≤0.4µm (16µin)
- Highest degree of cleanability
- Strengthened closure allows 150 psi (10 bar) operation
- Heavy-duty legs provide stability and ruggedness
- Suitable for Clean-in-Place and Steam-in-Place processes
- Standard models are provided with sanitary hose barb drain and vent side ports
▎Applications
- Pharmaceuticals: filtration of injectables, LVPs, water for injection, antibiotics, and other biological products
- Laboratory water, ultra-high purity water
- Food and beverage: filtration of beer, wine, distilled spirits, juices, syrups
▎Materials of Construction
| Shell Components | 304 or 316L Stainless Steel |
| Seal Options | SILICONE, EPDM, FKM, NBR |
▎Operating Conditions
| Operating Temperature | 150°C (302°F) max. |
| Design Pressure | 10 bar (150 psi) |
▎Surface Finish
| Surface Quality | Internal: Ra ≤0.3µm(12µin)
External: Ra≤0.4µm (16µin) |
| Finish, internal | Mechanical Polishing, Electropolishing |
| Finish, external | Mechanical Polishing, Electropolishing |
▎Product Quality
- Manufactured within an ISO 9001:2015 certified quality management system
- Certified to NSF/ANSI-61 and 372
- Halal certified
- Certification of Quality document can be provided upon request
Dimensions (mm)
Order Information
