Features

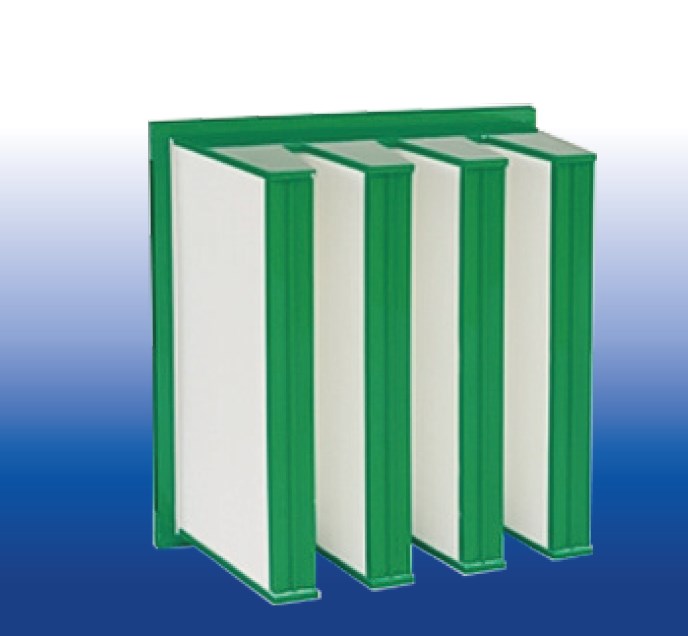

- Optimized V-type structure design, low pressure, high air volume, high dust holding, high efficiency.
- 30%-40% more filter material than ordinary filter
- V-type and V-type box type without partitions are available
- Robust construction ensures good performance under high flow conditions
Material
| Frame materials | ABS frame / Galvanized frame |
| Media | Moisture-proof micro glass fibers (Import and domestic) |
| Filter efficiency | M6, F7, F8, F9(EN 779)/H13, H14 (EN 1822） |
| Sealant | Bi-component polyurethane |
| Separator | Hot-melt |
| Gasket | CR/EPDM |
| Grille | Plastic spraying net |
| Max. temperature | 80°C(176°F) |
| Max. humidity | 100%RH |
Applications
- Intermediate or final filtration of Aerospace, Life-Science, Microelectronic, Food&Beverag , Animal husbandry common air – conditioning ventilation system
