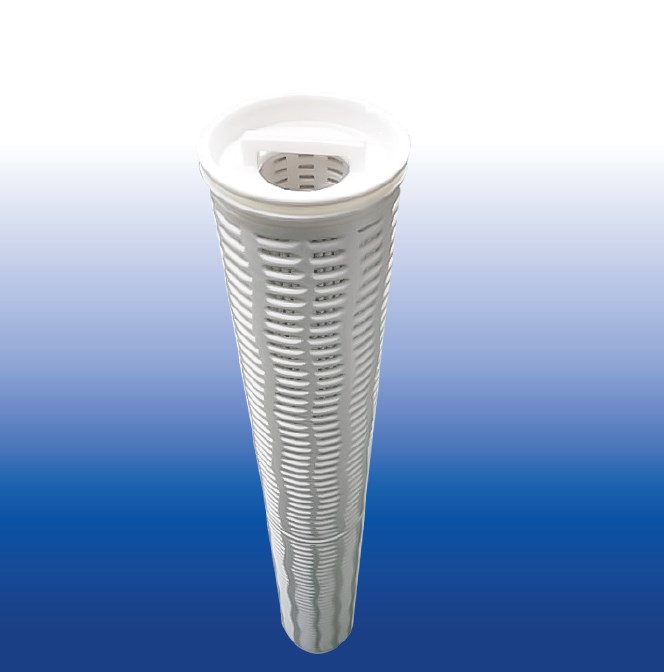

THF Series Filter Cartridges feature all-polyester construction with high-efficiency retention performance. Superior chemical tolerance versus polypropylene for benzene, methylbenzene, and aromatic hydrocarbon solvents. Superior temperature tolerance versus polypropylene, allowing use in up to 120°C for periods. Thermally-bonded construction assures integrity and low degree of extractable substances.
Features
- Substantial effective filtration area allows for long operat-ing service life.
- 100% polyester construction provides chemical compatibili-ty where polypropylene isn’t suited.
- Media composition is structured for ratings of 0.5 to 5microns.
- Optional micro-glass media options provide enhanced retention efficiency.
Applications
- Filtration of benzene and methylbenzene.
- Filtration of aromatic hydrocarbon solvents.
Specifications
| Dimension | |
| Outer Diameter | 152mm (6”) |
| Length | 1026mm (40”), 1524mm(60”), 1540mm (60”L) |
| Filtration Area | 3.35m²/40“ , 5 m²/60“ |
| Material of Constructions | |
| Media | GF, PBT |
| Support Layers | Polyester |
| Cage/Core/End Caps | Polyester |
| Seal Material Options | EPDM, FKM |
| Performance | |
| Max. Temperature | 120° C (248° F) |
| Max. dP (forward) | 4 bar (60 psi) @ 20°C (68°F) |
| Recommended Change-Out dP | 2.4 bar (35 psi) @ 80°C (176°F) |
Quality
- Filter cartridges are manufactured in a production facility using Good Manufacturing Practices under an ISO9001:2015 registered Quality Management System.
- Full materials traceability is documented for all finished lots.
