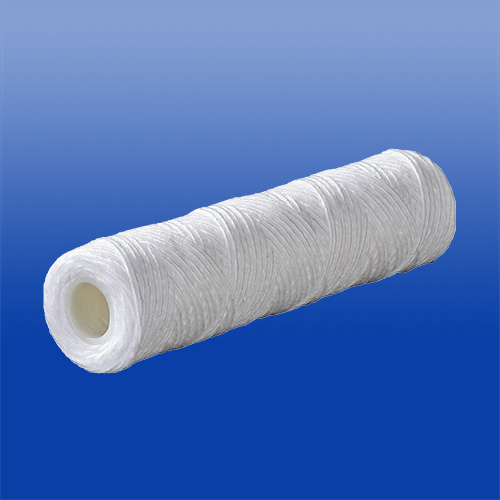

SW Series String Wound Filter Cartridges are manufactured of structured loose outer layers and tight inner layers, offering true depth filtration for high dirt holding capacity and extremely low media migration. The main advantage of the string wound filter cartridge is its exceptionally high structural strength. Therefore, they can withstand higher PSID and severe operating conditions.
Features
- Broad chemical compatibility
- Many different combinations of filter materials and pore sizes
- Graded pore structure of efficient removal of a wide range of particle sizes
- High dirt holding capacity
- Cost savings from long service life
Applications
- Consumer Products
- Food and Beverage
- Drinking Water
- Pharmaceutical
- Edible Oil
- Inks & Paints
- Photographic
- Plating Solutions
- Petrochemicals
- Waste Water
- Chemicals
- Oil
Specifications
| Dimension | |
| Outer Diameter | 63mm, 115mm |
| Inner Diameter | 28mm |
| Length | 9.87”, 10”, 20”, 30”, 40” |
| Material of Constructions | |
| Media | PP, Cotton,Glass Fiber |
| Inner Core | PP, Stainless steel |
| Performance | |
| Max. Operating Temperature | PP：80℃(176° F) Cotton：120℃(248° F) Glass Fiber：200℃(392° F) |
| Max. Operating DP | 2.0 Bar(29psi) @25℃(77° F) |
