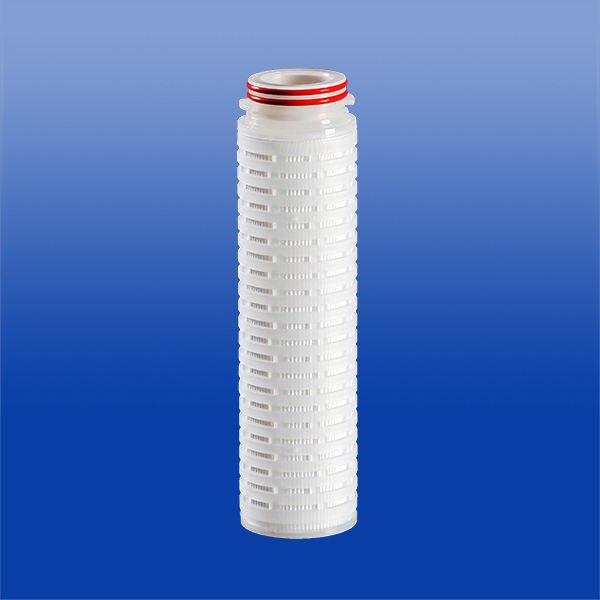

SVA Series Pleated Filter Cartridges are made of unique hydro-philic PVDF membrane characterized by ultra-low extractables and protein binding.They are specially developed for the removal of particles and microorganisms in application where maximizing protein recovery is critical.
Features
- Ultra-low protein binding & low extractables
- Superior flow rates
- All-thermal bonded construction,no adhesives
- Broad chemical compatibility
Applications
- Biological agents
- Antibiotics
- Disinfectant, mundificant
- Culture medium
- Blood products
Specifications
| Dimension | |
| Outer Diameter | 69mm (2.72”) |
| Lengths | 5”, 10”, 20”, 30”, 40” |
| Filtration Area | 0.65m2 per 10” filter |
| Material of Constructions | |
| Media | PVDF |
| Support Layer | PP |
| Core/Cage | PP |
| End Cap | PP, SS with insert |
| Seal Material Options | Silicone, EPDM, NBR, FKM, E-FKM |
| Performance | |
| Max. Operating Temperature | 80° C (176° F) |
| Max.Operating DP | 4 bar (58 psi) @ 20°C (68°F) 2 bar (29 psi) @ 80°C (176°F) |
| SIP | 125℃, 30min |
Guarantee
- Manufactured in a clean room environment
- Manufactured according to ISO9001:2015 certified Quality Management System
- Full traceability to each filter with unique serial number, 100% integrity tested
