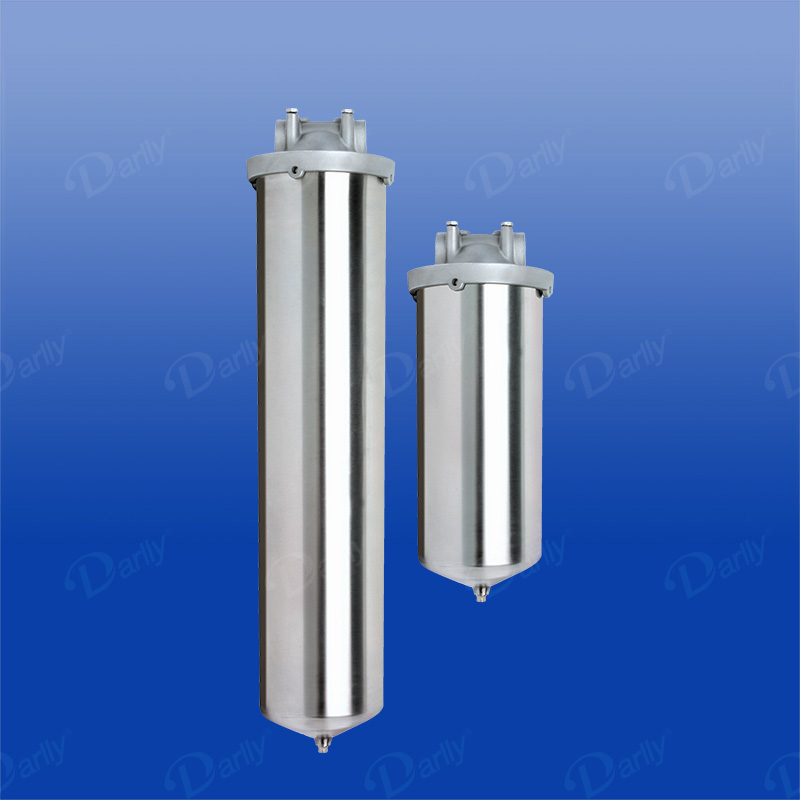

Manufactured of 304 stainless steel. Accept standard “Big Blue11 4” to 4.5” OD filter cartridges. These rugged & durable housings can provide decades of service. Avoids the catastrophic failures seen with plastic housings. Suitable for use with potable water and food products. The W’NPT bottom port allows easy draining.
An internal spring-loaded seal plate allows proper sealing of cartridges with varying length. Ring-nut closure provides a secure housing fit-up.
EPDM seals are provided as standard. Optional seal materials available.
▎Features
- Stainless steel construction resists corrosion
- Rugged, and capable of decades of use
- Component materials comply with US FDA and EU regulations for safe use with potable water
- Provides fine economy in a metal housing
- Mounting bracket is included
▎Applications
- Industrial process fluids
- Restaurants & institutions
- Under-sink or whole-house water filtration
▎Materials of Construction
| Shell Components | 304 Stainless Steel |
| Seal Options | EPDM, FKM, NBR |
▎Operating Conditions
| Operating Temperature | 99°C (210°F) max. |
| Design Pressure | 10 bar (150 psi) @ 99°C (210°F) |
| Flow Rate* | 12 GPM for 10″ models 24 GPM for 20″ models |
▎Dimensions
| Diameter | 127mm (5″) |
| Length | 10” nominal (15.25″ actual) 20” nominal (25.25″ actual) |
| Cartridge Fit | 9.75″ – 10″ for 10″ models 19.5″ -20″ for20″ models |
▎Product Quality
- Manufactured within an ISO 9001:2015 certified quality management system
- Certified to NSF/ANSI-61 and 372
- Halal certified
- Certification of Quality document can be provided upon request
▎Dimensions (mm)
▎Order Information
