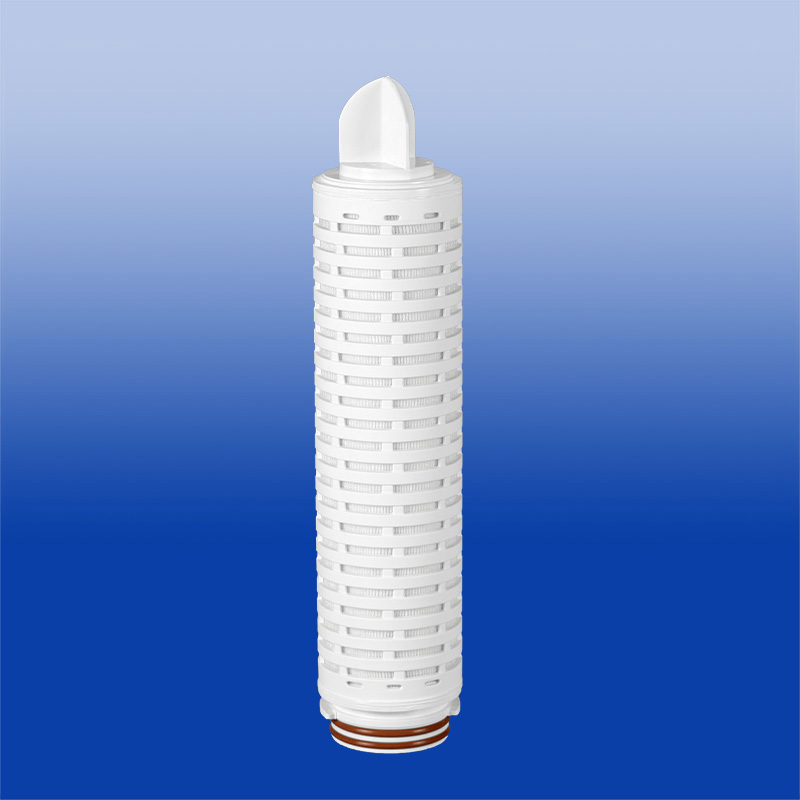

PTG Series PTFE Pleated Filter Cartridges feature hydrophobic polytetrafluoroethylene (PTFE) membrane which offers excel-lent chemical compatibility and is an ideal choice as an air/gas vent filter. Specialty-grade polypropylene hardware and support layers offer enhanced resistance to oxidation. Is well-suited as an air vent filter for fermentation processes. Integrity testable by water intrusion (WIT).
Features
- Absolute 0.22µm filtration efficiency.
- 100% integrity tested.
- Receives a final rinse with 18MΩ ultrapure water to assure cleanliness.
- Excellent chemical compatibility. Tolerates pH 1 to 14.
- The membrane resists wetting.
Applications
- Sterile process air
- Aseptic packaging
- Tank air vents
- Fermentation process feed air
- Compressed gases
- Tolerates aggressive fluids: solvents, strong acids, & bases
Specifications
| Dimension | |
| Outer Diameter | 69mm (2.72”) |
| Lengths | 5”, 10”, 20”, 30”, 40” |
| Filtration Area | 0.68 m² per 10” Filter |
| Material of Constructions | |
| Media | Inherently hydrophobic PTFE |
| Support Layer | Polypropylene |
| Cage/End cap/Core | Polypropylene |
| Seal Material Options | Silicone, EPDM, FKM |
| Removal Efficiency | |
| 0022 | Gas: 0.01μm , Liquid: 0.22μm |
| Operating Limits | |
| Max. Temperature | 80℃(176℉) |
| Max. dP (forward) | 4 bar (58 psi) @ 20°C (68°F) 2 bar (29 psi) @ 80°C (176°F) |
| Sterilization | 135°C (275℉)30min@150cycles |
Quality Assurance
- 100% Integrity Tested.
- Filter cartridges are manufactured in a clean room environ-ment using Good Manufacturing Practices under an ISO9001:2015 registered Quality Management System.
- Cartridges are individually serialized and have full materials traceability.
Food Contact Safety
- Materials of construction comply with USFDA regulations for safe use with food and beverages.
- Complies with European Directive EC1935/2004.
- Halal certified.
Flow Rate
Integrity Test Parameters
| Bubble Point (BP) | ≥1100mbar@IPA: Water 60:40 |
| Diffusion Flow (DF) | PTGP≤16ml / min@1035mbar PTGW≤24ml / min@1035mbar |
| Water Instrusion (WIT) | PTGP≤0.38ml / min@2500mbar PTGW≤0.75ml / min@2500mbar |
Order Information
