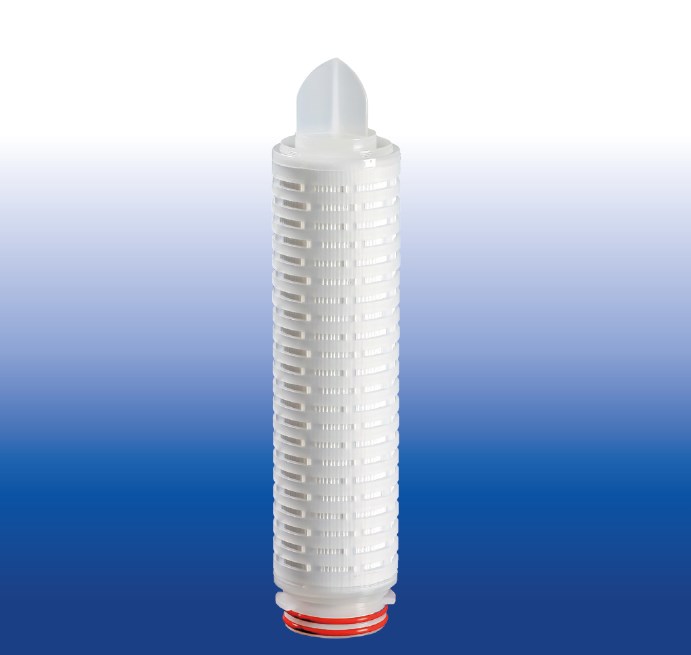

PTD Series Pleated Filter Cartridges are made with hydrophobic PTFE membrane which is with excellent chemical compatibility. Double layer membrane structure guarantees bacteria removal efficiency. This cartridge is widely used in the compressed air, solvent prefiltration and bacteria removal filtration in Pharmaceutical industry.
Applications
- Compressed air
- Solvent
- Filling breathing machine
- Fermentation tank breathing machine
Features
- Durable PTFE and PP components
- Excellent chemical compatibility
- 100% integrity tested
Specifications
| Dimension | |
| Outer Diameter | 69mm (2.72”) |
| Length | 5”, 10”, 20”, 30”, 40” |
| Materials of Construction | |
| Media | hydrophilic PTFE |
| Support | Polypropylene |
| Cage/Core/End cap | Polypropylene |
| Connection Adaptor | SS Insert, PSU Insert |
| Seal Material Options | Silicone, EPDM, FKM |
| Performance | |
| Operating Conditions | |
| Max.Operating Temperature | 80℃ |
| Max. Operating DP | 4 bar (58 psi) @ 20°C (68°F) 2 bar (29 psi) @ 80℃ (176°F) |
| SIP | 135℃(275℉), 30 min, 150cycles |
| Bacterial Retention | LRV≥7 Pseudomonas diminuta |
| Filtration Area | 0.65 m2 /10” Filter Cartridge |
| Extractables | 10” Filter Cartridges ﹤20mg |
Quality
- Manufactured in a clean room environment
- Manufactured according to ISO9001:2015 certified Quality Management System
- Materials of construction comply with FDA requlations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR
- Individual element is tracked by serial number
