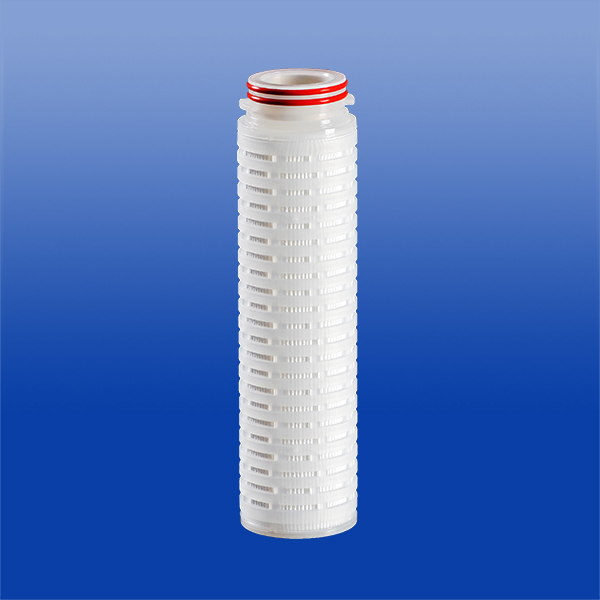

PCB Series Pleated Filter Cartridges use absolute rated N66 membrane that is inherently hydrophilic and has excellent chemical resistance. It is manufactured without the use of glues, adhesives or wetting agents, ensuring high purity in various application.
Features
- Hydrophilic Nylon 66 membrane
- No wetting agents, High flow and long service life Absolute rated filtration
- All thermal boned construction,no adhesives Excellent chemical resistance
- 100% integrity tested
Applications
- Pharmaceutical
- Organic solvents and aqueous co-solvent systems
- High purity water filtration
- Food and Beverage
Specifications
| Dimension | |
| Outer Diameter | 69mm (2.72”) |
| Lengths | 5”, 10”, 20”, 30”, 40” |
| Material of Constructions | |
| Media | N66 |
| Support Layer | Polypropylene |
| Cage/End cap/Core | Polypropylene |
| Seal Material Options | Silicone, EPDM, FKM |
| Performance | |
| Max. Operating Temperature | 80℃(176℉) |
| Max Operating DP | 4 bar(58psi)@20℃(68℉) 2 bar(29psi)@80℃(176℉) |
| Autoclave Sterilization | 125℃(257℉), 30min, 30cycles |
| SIP | 125℃(257℉), 30min, 30cycles |
| Filtration Area | 0.65 m² per 10” Filter |
| Extractables | 10” Filter Cartridges < 25mg |
Quality Assurance
- Manufactured in a clean room environment
- Manufactured according to ISO9001:2015 certified Quality Management System
- Meets USP Biological Reactivity Test requirements of the current USP <88> for plastic class Ⅵ-121℃
Flow Rate
Order Information
