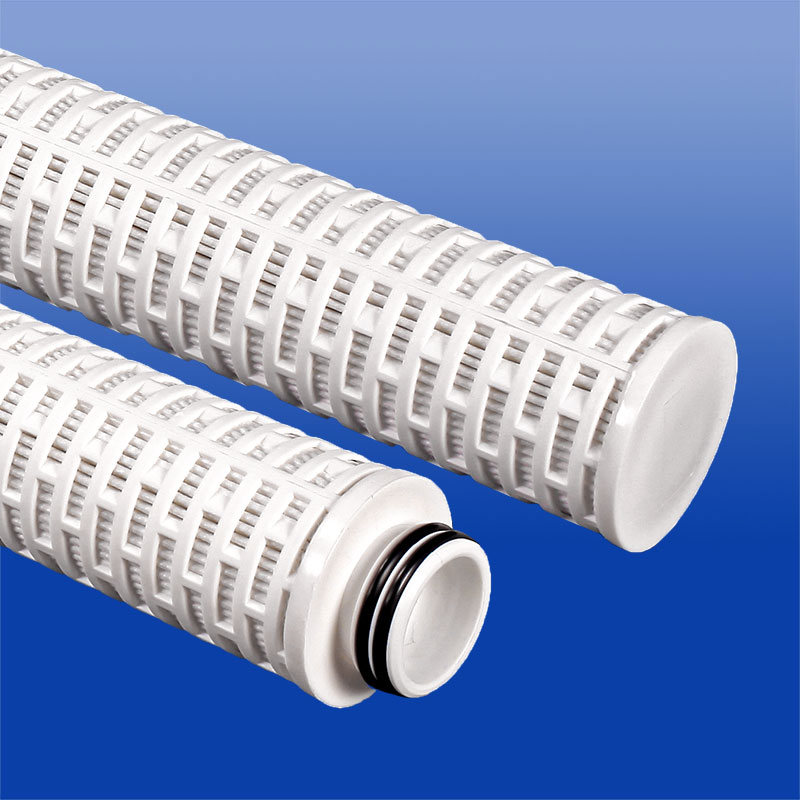

OF Series Pleated Filter Cartridges are used for filtration of oilfield fluids. The fully thermal welded construction ensures safe operation and optimum filtration performance. The fully thermal welded construction ensures safe usage in filtration with high temperature fluids, acids, diesel, oily water, and solvents. The high performance 3-layers media construction generally have a higher dirt-holding capacity in part due to the more consistent pore size throughout the media with larger filtration area at an absolute rating of beta5000 (99.98% effective efficiency). As the synthetic fibers are smaller than cellulose fibers, they can be packed tightly together, creating more pores to trap and hold particles. Synthetic fibers also perform better in harsh environments that tend to damage cellulose filters. OF series is manufactured with a rigid outer cage, ideally suitable for use in harsh oilfield environments and available in a wide range of microns, contributing to the protection of oilfield formations.
Features
- Large filtration area and depth filtration provide a long life time
- Fully thermal welded without glues or adhesives Beta5000 (efficiency 99.98%) for glass fiber media
- Low cost due to large filtration area and low frequency of change out
- Three layers construction:
- Glass fiber media with PET support layer for maximum removal performance,strength and stability
- The higher strength of outer hard cage
Applications
- Completion fluids
- Work over fluids
- Gravel pack fluids
- Waste water
- Diesel, fuel & oil
- Surface water intake
- Run-off water
- Polishing brines
- Gels, amines & glycols
- Process water
- Pre filtration RO
- Stimulation fluids
- Acids flow back
Specifications
| Dimension | |
| Outer Diameter | 64mm |
| Inner Diameter | 28mm |
| Length | 30”, 40” |
| Material of Constructions | |
| Media | PP, PET, Glass Fiber |
| End Cap Material | Polypropylene |
| Center Core | Polypropylene |
| Outer Cage | Polypropylene |
| Sealing | Silicone, EPDM, NBR, FKM |
| End Cap Type | 222/Flat End |
Performance
Operating pressure and temperature: change out differential pressure 35psi(2.5Bar)
Max. workong Temperature: 80℃(176℉)
Max. Differential pressure: 5.5 bar(80psi) @ 25℃(77℉) Beta: 5000(99.98% removal efficiency) for glass fiber media Construction: Fully thermal welded
Quality
- Manufactured according to ISO9001:2015 certified Quality Management System
Flow Rate
Dimensions
Order Information
