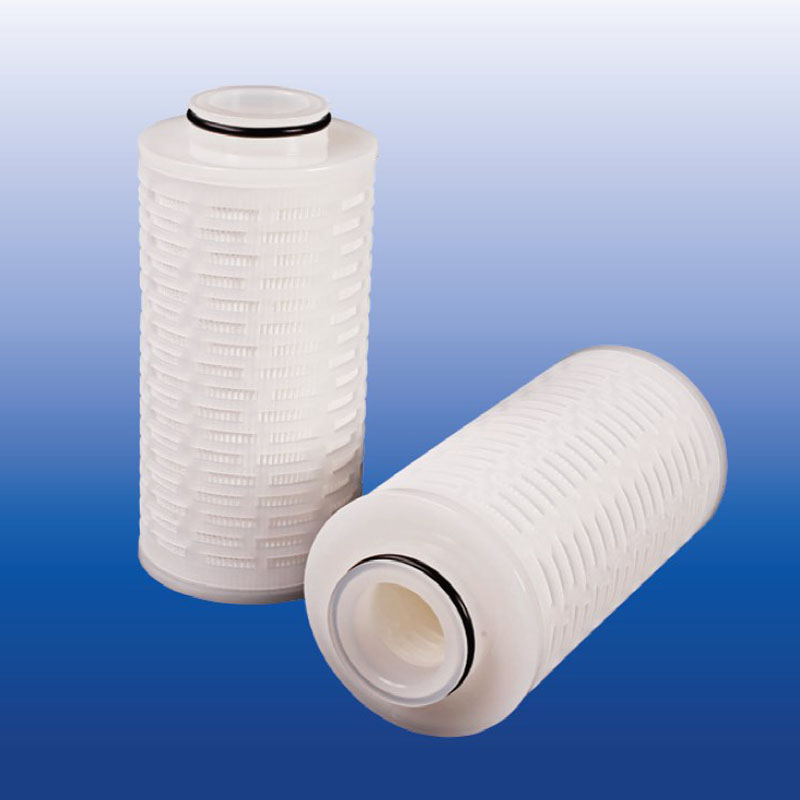

131 Series Pleated Fliter Cartridges are suitable for filtration in the manufacture process of LCD panel, especially suitable for high flow rate requirement in the peocess. It can meet the 7-10 grade line which has requirement of 250L/min flow rate.
Features
- Save the cost, easy to repalce
- Large filtration area and high flow rate and dirt holding capability extend the life time of the filter cartridge and reduce the time of replacing the filter cartridge and shutting down time. It reduce the system cost efficiently.
- Many media type and micron rating options
- According to different filtration requirements it can choose PP/PES/PTFE media. Micron rating is from 0.01um to 50um for options.
- Material is safe and reliable
- All the parts of SemigaTMQF83 Series pleated filter cartridge use high purity of electronic grade PP material. It is thermally welded with media without using any glue and active agent to reduce the risk of filter cartridge precipitation and make sure the filtration safe.
Specifications
| Dimension | |
| Outer Diameter | 131mm |
| Lengths | 10” |
| Material of Constructions | |
| Media | PP, PES, Hydrophobic PTFE, Hydrophilic PTFE |
| Support Layer | PP |
| Cage/Core | Polypropylene |
| End cap | Polypropylene |
| Seal Material Options | EPDM, FKM, E-FKM |
| Operating Limits | |
| Max. Operating Temperature | 80℃ |
| Max. Operating DP | 4.0 bar @ 20°C 2.4 bar @ 80°C |
Liquid Flow Rate Per 10′
（GPM）Water at 25℃
Order Information
