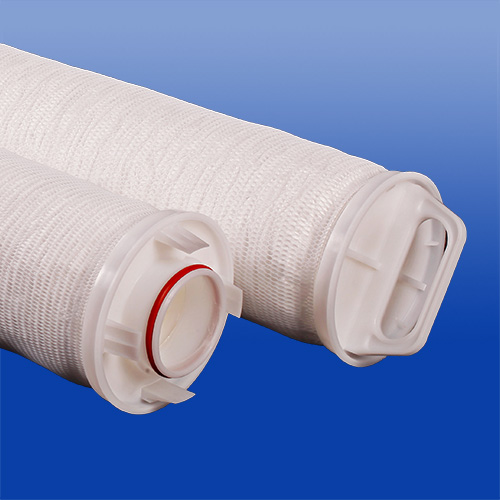

MHFB Series High Flow Filter Cartridges are made of high performance media with horizontal pleat design that provides higher filtration area and longer service life. The media construction of multiple layers ensures the high dirt holding capacity with high efficiency per filter. The filter has a big diameter of 163.5mm/166mm. “Twist to lock” seating mecha-nism provides positive seal. One MHFB filter replaces few standard 10″ filter cartridges to reduce the operating costs and making change out quickly and easily for critical applica-tions. All the PP configuration with good chemical ensures the wide applications.
Features
- Available in nominal structure, particle removal rating from 0.5 to 100 micron
- Horizontal pleat, high filtration area, high flow rate
- High performance fiber matrix with no adhesives or surfac-tants, non-fiber releasing to keep the high quality fluid, highly stable structure, and high dirt holding capacity
- 100% polypropylene components provide wide chemical compatibility , suitable for use in a variety of fluids
- Fewer cartridges required, reducing operating, saving space and system footprint
- The long service life results in low investment and less manpower in many applications
Applications
- Food & Beverage
- Process water(Pre-RO, Cooling…)
- Ground/Reclaimed/Wastewater
- Sea water desalination
- Oil & Chemical
- Power plant water treatment
- Machinery & Equipment
- Chemicals
- Refing(Amine, Final product)
- Machine coolants
Specifications
| Dimension | |
| Outer Diameter | 163.5mm, 166mm |
| Length | 40”, 60” |
| Material of Constructions | |
| Media | PP |
| Cage/Core/End cap | PP |
| Seal Material Options | Silicone, EPDM, FKM, E-FKM |
| Performance | |
| Max. Operating Temperature | 80℃(176℉) |
| Max. Operating DP | 3 bar(44psi)@ 20℃(68℉) |
| Recommended Change out Differential Pressure | 2.4 Bar(35psi)@20°C(68℉) |
Quality
- Manufactured in a clean room environment
- Manufactured according to ISO9001:2015 certified Quality Management System
Food Contact Compliance
- Material of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR.
- Filter cartridges meet the requirements of European Commission Directives (EU10/2011)
Flow Rate
Dimensions
Order Information
