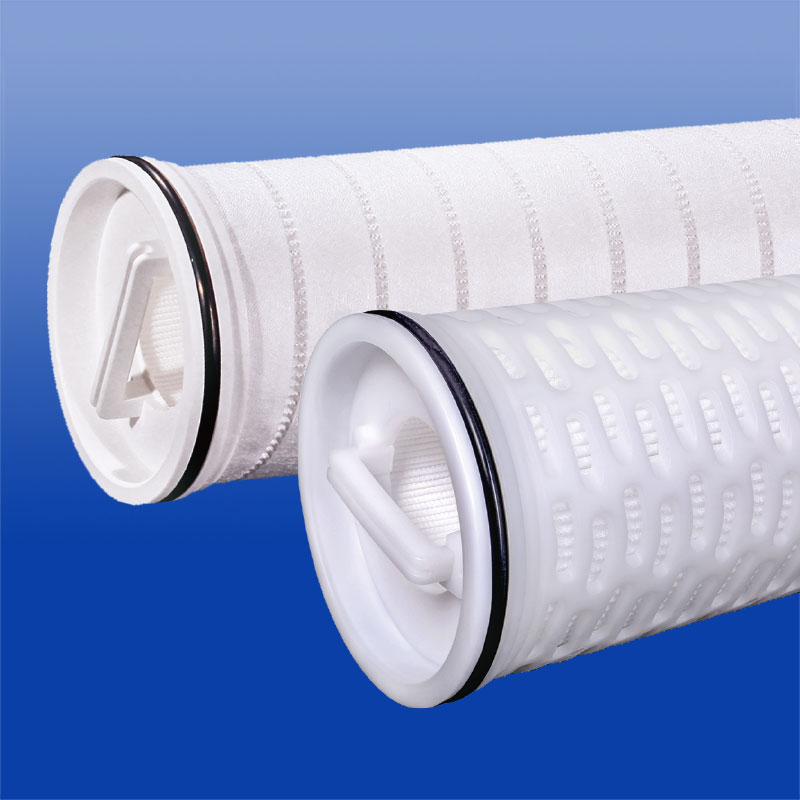

HF Series High Flow Pleated Filter Cartridges are made of depth fine PP non-woven fabrics. The pleated filter cartridge is single open ended and in diameter of 6inch/154mm, inside to outside flow design ensures that the unwanted particles are trapped with the element. One HF filter replaces few standard 10″ filter cartridges to reduce the operating costs and make change out quickly and easily for critical applications. The multiple layers with depth pleated design provides higher removal efficiency and longer service life than other cartridges of equal efficiency. All the PP configuration with good chemical compatibility ensures that can be used for wide applications.
Features
- Available in economic/nominal/absolute structure, particle removal rating from 0.5 to 100 micron
- 100% polypropylene components provide wide chemical compatibility, suitable for use in a variety of fluids
- With depth fine non-woven fabrics and scientific design, the filter is in a good structure, having high dirt holding capacity and resulting in longer service life
- The pleated media in large diameter reduces operating costs, makes change out quickly and easily and makes cartridge in longer service life
- Higher dirt holding capacity with large diameter reduces the changes times of cartridges
Applications
- Food & Beverage
- RO Pre-Filtration
- Process water(Pre-RO, Cooling…) Ground/Reclaimed/Wastewater Sea water desalination
- Oil & Chemical
- Power plant water treatment Machinery & Equipment
Specifications
| Dimension | |
| Outer Diameter | 154mm |
| Length | 20”, 40”, 60”, 80” |
| Material of Constructions | |
| Media | PP, GF |
| Cage/Core/End cap | PP |
| Seal Material Options | Silicone, EPDM, FKM, E-FKM |
| Performance | |
| Max. Operating Temperature | 80℃(176℉) |
| Max. Operating DP | 2.4 Bar(35psi)@20℃(68° F) |
| Recommended Change out DP | 2.2 Ba(32psi)r@20°C(68° F) |
Quality
- Manufactured in a clean room environment
- Manufactured according to ISO9001:2015 certified Quality Management System
Food Contact Compliance
- Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR.
- Meet the requirements of European Commission Directives ((EU) 10/2011)
Flow Rate
Dimensions
Order Information
