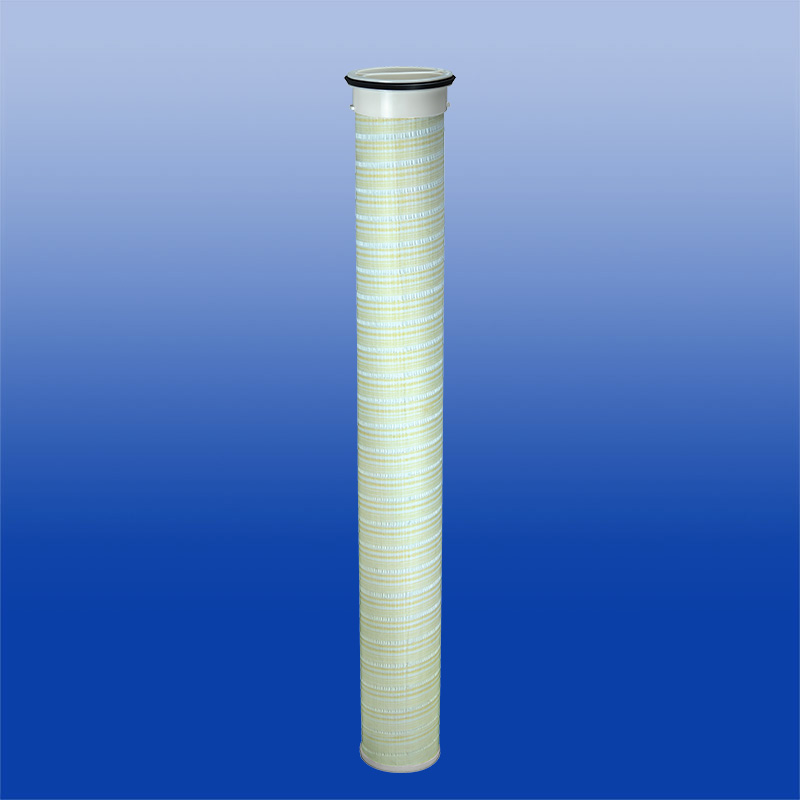

Darlly has optimized the filtration performance and separation efficiency of the HDC42 filter cartridge in applications such as biodiesel, which prolongs the service lifetime, obtains a longer working time of low pressure difference and helps save costs for customers. HDC42 offers gradient filtration with a combination of absolute precision layer, it shows a range of excellent characteristics such as higher dirt holding capacity, higher porosity and stronger fine particle capture capacity etc, ensuring high flow filtration processes.
▎Features
Gradient filtration, highly interception efficiency and longer service life time.
Large filtration area, high dirt-holding capacity
PBT structure material, high mechanical strength
The flow direction from inside to outside ensures that impurities are trapped inside the filter cartridge for subsequent processing
▎Applications
B35/B20/B10 biodiesel filtration
Ordinary diesel filtration
Ordinary hydraulic/lubricating oils filtration
▎DImensions
Outer Diameter
132.5mm
Lengths
42”(1113mm)
Filtration Area
5m²
▎Operating Limits
Operating temperature range
-10℃(14℉) ~ 60℃(140℉)
Max. Operating DP
4 bar (58 psi)
▎Materials of Construction
Media
GF+PBT
Support / Drainage Laye
PBT
End cap
PBT
Seal Material Options
FKM
▎Quality
Manufactured in a clean room environment
Manufactured according to ISO9001:2015 certified Quality Management System
