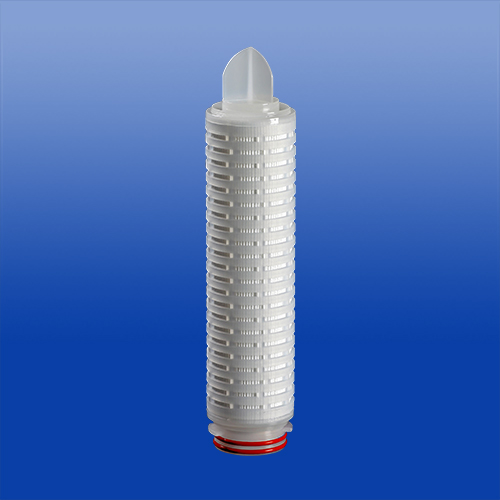

FSP Series Filter Cartridges contain a pleated filter media that exhibits a very high lever of positive charge. This provides a cartridge that offers both high flow and efficient removal of ultrafine contaminants. The heart of the filter is a nanoalumina and glass microfibre media that delivers > 50 millivolts Zeta potential at PH 7.2. This construction also produces a filter media with a very high internal surface area. Therefore FSP Series Filter Cartridges are very cost effective method or removing negatively-charged contaminants from aqueous solutions and polar solvents.
Features
- Relatively open porous structure offering high flow rates and long in process life times
- High zeta potential for effective removal of ultratine contaminants
- Enormous internal surface area providing high capacity for contaminant removal
- Media tested to ensure suitability for critical processues including pharmaceutical applications and potable water
Applications
- Water Treatment
- Pharmaceutical process
- Potable water
- Waste water treatment
- Removal of endotoxins from purified water, RO protection
- Bioburden and endotoxin reduction
- Removal of contaminants
- Removal of heavy metals, emulsions
Specifications
| Dimension | |
| Outer Diameter | 69mm (2.72”) |
| Lengths | 5”, 10”, 20”, 30”, 40” |
| Filtration area | 0.37m²/10″ |
| Material of Constructions | |
| Media | Borosilicate Glass Microfibre and Nanoalumina |
| Support Layer | Polypropylene |
| End cap | Polypropylene |
| Cage/Core | Polypropylene |
| Seal Material Options | Silicone, EPDM, FKM |
| Performance | |
| Max. Operating Temperature | 80°C (176°F) |
| Max. dP (forward) | 4 bar (58 psi) @ 20°C (68°F) 2 bar (29 psi) @ 80°C (176°F) |
Quality Assurance
- Manufactured in a clean room environment
- Manufactured according to ISO9001:2015 certified quality management system
Food Contact Compliance
- Materials of construction comply with FDA requirements for food and beverage contact use as detailed in the US Code of Federal Regulations 21 CFR.
Order Information
