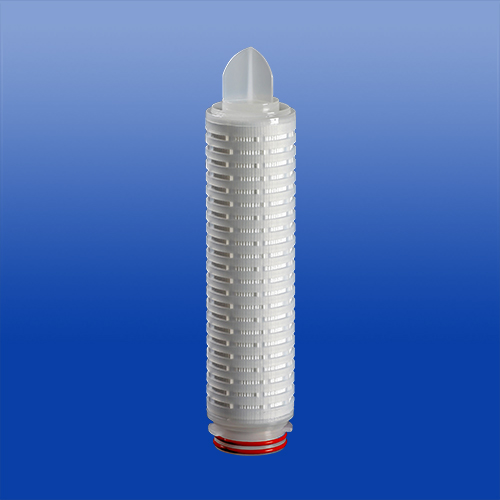

FGF Series Filter Cartridges are absolute rated, pleated depth-type filters, constructed of 100% polypropylene materi-al. These filters are available in absolute particle retention ratings from 0.1 to 50 micron and various end cap configura-tions to fit into the most standard housings. All components of the FGF series filter cartridges are FDA approved. The filter media and its support structure are thermally welded to the end caps, making integral filter cartridges of minimum extract-ables in a wide range of fluids and applications. All the filter cartridges are manufactured in a clean room environment.
Features
- Absolute rated structure, particle removal rating from 0.1 to 50 micron
- 100% polypropylene components provide broad chemical compatibility, suitable for use in a variety of fluids
- Consistent particle removal, no migration of filter media and non fiber shedding
Applications
- Food & Beverage
- Plating Chemicals
- RO Pre-Filtration
- Fine Chemicals
- Process Water
Specifications
| Dimension | |
| Outer Diameter | 69mm (2.72”) |
| Lengths | 5”, 10”, 20”, 30”, 40” |
| Material of Constructions | |
| Media | Polypropylene |
| Support Layer | Polypropylene |
| Hardware | PP,SS core & adapter insert available |
| Seal Material Options | Silicone, EPDM, NBR,FKM, E-FKM |
| Performance | |
| Max. Operating Temperature | 80°C (176°F) |
| Max. dP (forward) | 4 bar (58 psi) @ 20°C (68°F) 2 bar (29 psi) @ 80°C (176°F) |
Quality Assurance
- Manufactured in a clean room environment
- Manufactured according to ISO9001:2015 certified quality management system
Food Contact Compliance
- Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR
- Meet the requirements of European Commission Directives ((EU) 10/2011)
- Halal Certified
Flow Rate
Order Information
