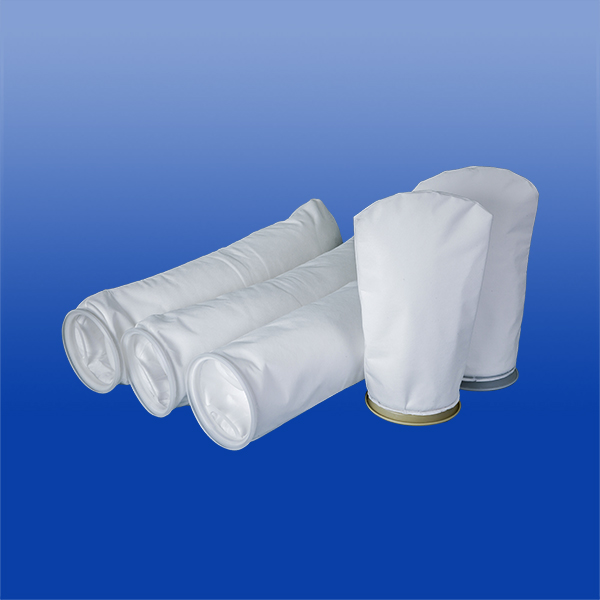

Filter bags are one of the most cost effective choices for a wide range of filtrations, ranging from food and beverage to industrial chemical filtration. The micron ratings range from 0.5 micron to 100 micron, and coupled with our wide of filter bag material choices. It applies to the removal of particles of various sizes. PP, PET needle felt bags are suitable for nominal precision filtration, while nylon mesh bags are suitable for filtration at lower ratings. Light weight and low cost filtering material offer high chemical and corrosion resistance. It follows the international standard and is compatible with bag filter housings of current mainstream brands.
Features
- Various media types and sizes available
- Broad chemical compatibility
- Sewn or fully welded construction
- High flow rate / low pressure drop
- High dirt holding capacity
- Low cost
Applications
- Chemicals
- Paints & Coatings
- Food and Beverage
- Machinery
- Water Treatment
Specifications
| Dimension | |
| Size 1 | Ø180mm x L420mm |
| Size 2 | Ø180mm x L810mm |
| Size 3 | Ø105mm x L230mm |
| Size 4 | Ø102mm x L380mm |
| Size 5 | Ø150mm x L520mm |
| Material of Constructions | |
| Media | PP, PET, Nylon |
| Seal Ring | SS, PP |
| Performance | |
| Max. Operating Temperature | PP: 80℃(176℉) PET: 120℃(248℉) Nylon: 160℃(320℉) |
| Max. Operating DP | PP: 2 bar(29psi)@20℃(68℉),1 bar(15psi)@80℃(176℉); PET: 2 bar(29psi)@20℃(68℉),1 bar(15psi)@120℃(248℉); Nylon: 2 bar(29psi)@20℃(68℉),1 bar(15psi)@80℃(176℉) |
