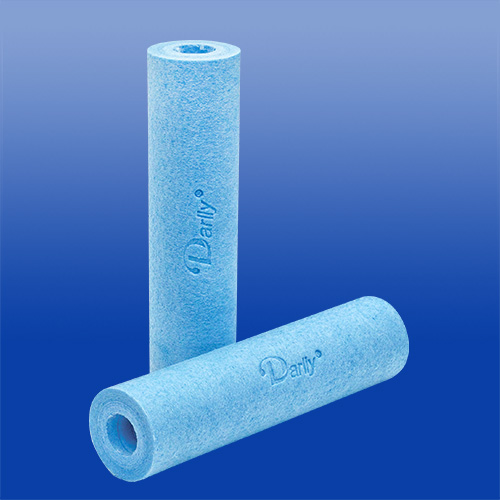

DLCG Series Antibacterial Melt Blown Filter Cartridges are a new type of high quality filter cartridges developed by Darlly. The cartridge can meet safer and healthier standards of filtration. With the additive silver ion of antibacterial ingredi-ent, the filters are antibiotic which highly ensure the safety of drinking water, filtration efficiency, and dirty holding capacity.
Features & Benefit
- Range of filtration ratings from 1µm to 100µm
- Graded density structure for maximum dirt holding capacity
- Additive silver ion of antibacterial ingredients ensure the drinking water safety
- Micro-denier melt blown PP fiber, high removal ratings and low pressure drop
- Safe materials and high cleanliness products which are in compliance with FDA requirements
Applications
- Food & Beverage
- Commercial Water Purification & Drinking Water System
- Bottled Water Manufacture
- Household Water Dispenser, Water Purification System
Specifications
| Dimension | |
| Outer Diameter | 63mm, 115mm |
| Inner Diameter | 28mm |
| Length | 9.75″, 9.87″, 10″, 20″, 30″, 40″ |
| Material of Constructions | |
| Media | PP fiber (with antibacterial ingredients) |
| Performance | |
| Filtration Efficiency | >90% |
| Max. Operating Temperature | 65℃ |
| Max. Operating DP | 2.5Bar |
