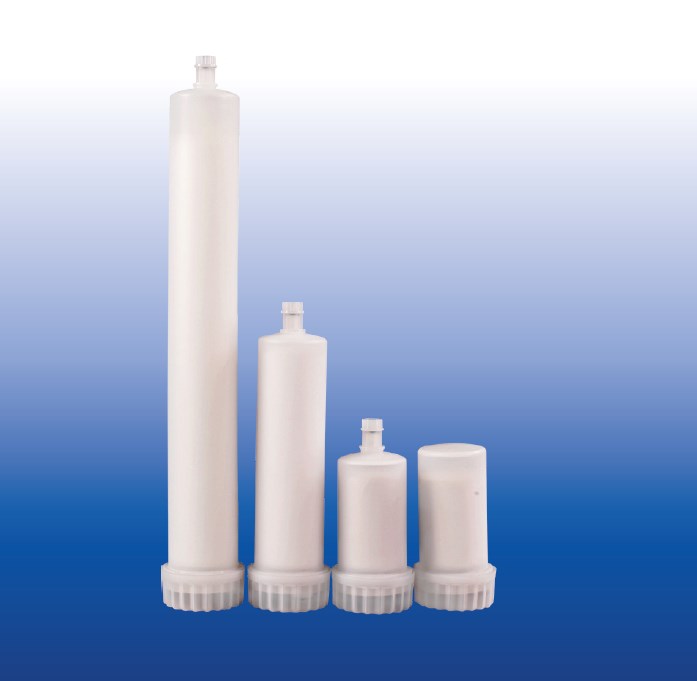

DL829 Series Capsule Filters have unique integrated structure, it is more convenient and safe. No need to clean the filter after replacing, which greatly reduces the cost of cleaning and waste water treatment, also can avoid operators contact with feed liquid directly, particularly suitable for toxic and harmful liquid filtration.
Features
- Safe and friendly design
Integrated structure design can prevent material leakage when replacing, throttle valve prevent feed liquid overflow, avoid operators contact with feed liquid directly.The housing is designed to isolate the filter cartridge and stainless steel filter, avoiding the overflow of the feed liquid to pollute the working environment.
- Low material wastage
Compact structure design, filter close to the shell,minimize the materialresidual, reduce the investment.
- Varieties specifications
According to the actual production process needs, select the different specification filter to meet the different applica-tions.
- Easy installation and operation
Integrated structure design shorten the replacement time, no need to clean the filter after replacing. Greatly reduces the time and cost of manpower.
Applications
- Battery manufacturing
- Chemical
- Microelectronics
- Paints & Coatings
Specifications
| Dimension | |
| Length | 165mm, 282mm, 529mm |
| Material of Constructions | |
| Media | PP |
| Cage/Connection | PP |
| Seal Material | EPDM, FKM, E-FKM |
| Performance | |
| Max. Operating Temperature | 60℃(140℉) |
| Max. Operating DP | 2.4 Bar(35psi)@20℃(68° F) |
| Max Operating Pressure | 4 bar(58psi) @ 20℃(68℉) |
Order Information
