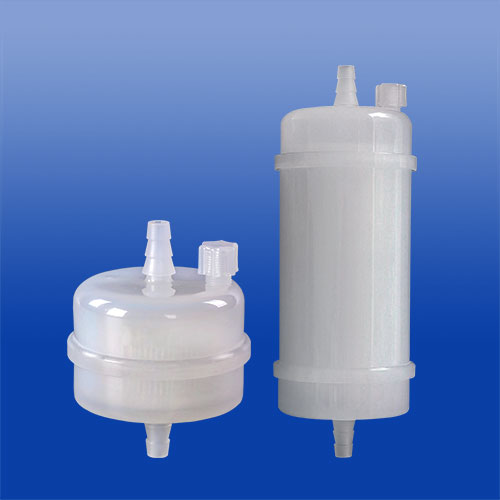

DL707 capsule filters adopt trapezoidal inlet and outlet hose barb and equip with exhaust and liquid port in the structure. Its inner filter membranes can be different according to specific biological filtration process, PTFE, PES, PVDF, PP and other materials are all available. The product shows high filtration efficiency when using, easy to install and convenient to operate. It can be widely used in biological pharmaceutical such as culture medium, buffers, organic solvents, other liquid filtration etc.
Features
- Wide chemical compatibility
- Hot-melt welding technology help to improve pressure resistance
- High flow rate and low extractables
- Easy to install and dismantle
- Multiple filter membranes are on available
- 100% Integrity Test
Applications
- Culture medium sterile filtration
- Buffer filtration
- Virus suspension filtration
- Filtration of aqueous or saline solutions etc.
Specifications
| Dimension | |
| Outer Diameter | 71mm |
| Length | 92.5mm, 195mm |
| Inlet/Outlet | 1/4″-3/8″HB |
| Material of Constructions | |
| Housing | PP |
| Media | PP, PTFE, PES, PVDF |
| Operating Limits | |
| Max. Operating Temperature | 80℃(176℉) |
| ax. Operating Pressure | 6 Bar(87psi) @ 20℃(68℉) |
| Filtration Area | 570cm², 2950cm² |
Drawing

Order Information
