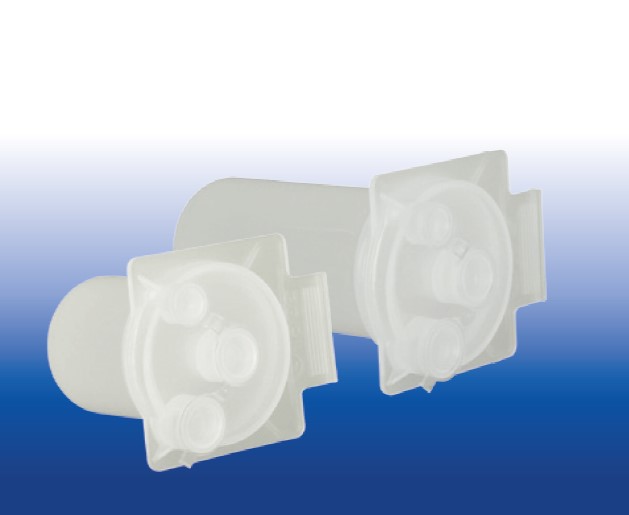

Darlly DL620/621 series is a three-joints capsule filter cartridge, which suits for photoresist filtration. Unique three-joints provides convenient for in-line connection. The housing is made of PP and HDPE materials can control the dissolved matter effectively, existing wide range of membrane media for options, so that the filter cartridge can meet various applications requirements.
Features
- For ease of installation
- Unique three-joints capsule is convenient to install, reducing exposed time of chemicals.
- Effective in controlling soluble substance
- The housing id made of HDPE and PP media, which can control soluble substance effectively while meeting chemi-cal compatibility requirements.
- Low pressure loss and high flow rates
- It can guarantee low pressure loss and high flow rate while ensuring filtration efficiency.
Specifications
| Dimension | |
| OD | 65mm |
| Length | 109 / 158mm |
| Material of Constructions | |
| Media | PP / PTFE |
| Cage | PP / HDPE |
| Seal Material | EPDM / SIL / NBR |
| Performance | |
| Max. Operating Temperature | 60℃ |
| Max. Operating DP | 6Bar@20℃ |
| Shell Burst Pressure | ≥10 Bar @ 20 ℃ |
Dimensional Drawings
Order Information
