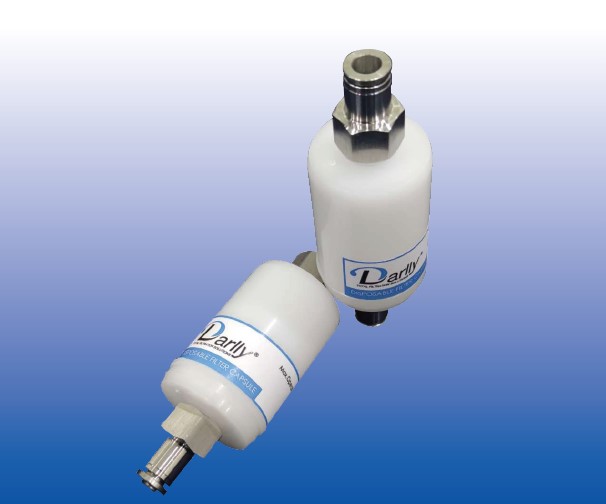

Darlly DL401 series filter cartridges are especially designed for processing gas filtration, and fine filtration of in-line gas. PTFE membrane ensures high interception. Its cage adopts for PP material with low extractable secures the safety of gas filtration. Wide range of inlet and outlet specifications available, and easy installation.
Features
- Wide range of inlet and outlet specifications available
- DL401 series has various specifications for options. Both inlet and outlet with quick insert structure that convenient for operation and replacement.
- Low pressure drop, high efficiency
- The natural hydrophobic PTFE membrane provides large filtration area and extremely low pressure drop while filtering gas. Excellent interception capacity and its efficien-cy can be up to 99.99%.
- Low extraction, resistant to high pressure
- Both housing and support adopt high purity material ,ther-mal weld without any adhesive to ensure low extraction and great pressure-resistance.
Specifications
| Material of Constructions | |
| Media | PTFE |
| Support | PP |
| Cage | PP |
| Performance | |
| Max. Operating Temperature | 45℃ |
| Max. Operating DP | 6Bar@20℃ |
| Shell Burst Pressure | ≥10 Bar @ 20 ℃ |
Dimensional Drawings
Order Information
