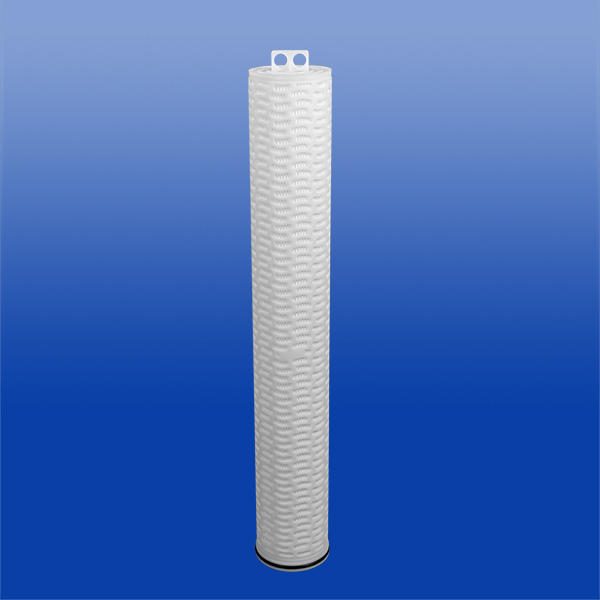

DHF Series High Flow Filter Cartridges can be taken from filters conveniently with two stretchable handles on both ends. The single open-ended filter is designed with a large input whose diameter of 6 inches. The design of super high flow can thus better improve the efficiency of filter cartridges and filters and save the cost. This filter cartridge also adopts depth fine PP fiber membrane as the main filtration layer.
Meanwhile, the filter’s crafts and remove ratings are optional, which can meet different requirements of applications.
Features
- Big filtration area, high flow rate
- Double handles, both ends are easily accessible
- Optional remove ratings
- Manufactured in cleanroom environment
Applications
- General purpose: RO system prefiltration
- Industrial: process water, cooling water, waste water filtration Chemical: filtration of various acids, bases, solvents,
- chilled water, saline
- Condensate water filtration in power plant
Specifications
| Dimension | |
| Outer Diameter | 154mm |
| Length | 20”, 40”, 60″ |
| Material of Constructions | |
| Media | PP, GF |
| Support | PP |
| Cage | PP |
| Performance | |
| Max. Operating Temperature | 80℃(176℉) |
| Max. Operating DP | 2.4 Bar(35psi)@20℃(68° F) |
| Recommended Change-out DP | 2.2 Ba(32psi)r@20°C(68° F) |
Quality
- Manufactured in a clean room environment
- Manufactured according to ISO9001:2015 certified Quality Management System
Food Contact Compliance
- Material of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR.
- Filter cartridges meet the requirements of European Commission Directives (EU10/2011)
Flow Rate
Order Information
