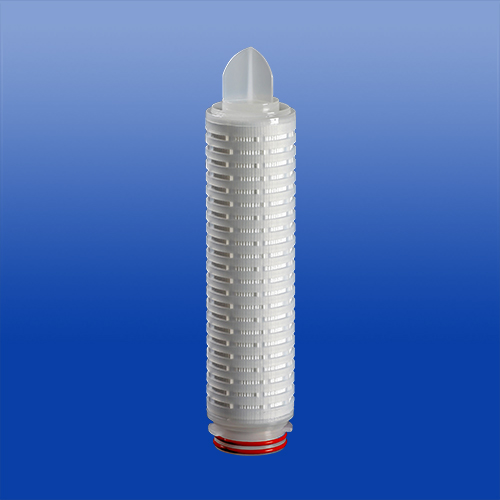

BTG Series Sterilizing-grade Filter Cartridges feature hydro-phobic polytetrafluoroethylene (PTFE) membrane to provide excellent chemical compatibility with aggressive solvents, oxidizers, and corrosive fluids. 100% integrity tested for quality assurance.
Features
- Inherently hydrophobic PTFE membrane
- 100% integrity tested for correlation to absolute retention.
- Excellent chemical compatibility.
- Enhanced resistance to in-line steam sterilization and autoclaving.
Applications
- Chemically aggressive fluids.
- Solvents, strong acids & bases.
- Fermentation process air/gas filtration.
- Process air vents.
- Bulk gas.
Specifications
| Dimension | |
| Outer Diameter | 69mm (2.72”) |
| Lengths | 5”, 10”, 20”, 30”, 40” |
| Material of Constructions | |
| Media | Hydrophobic PTFE |
| Support Layer | Polypropylene |
| Cage/Core/End cap | Polypropylene |
| Seal Material Options | Silicone, EPDM, NBR, FKM, E-FKM |
| Operating Limits | |
| Max. Operating Temperature | 80°C (176°F) |
| Max. dP (forward) | 4 bar (58 psi) @ 20°C (68°F) 2 bar (29 psi) @ 80°C (176°F) |
| Autoclave Sterilization SIP | 125°C (257°F), 30 min, 100cycles 125°C (257°F), 30 min, 30cycles |
Operating Limits
- 100% Integrity Tested.
- Filter cartridges are manufactured in a clean room environ-ment using Good Manufacturing Practices under an ISO9001:2015 registered Quality Management System.
- Cartridges are individually serialized and have full materials traceability.
Flow Rate
Order Information
