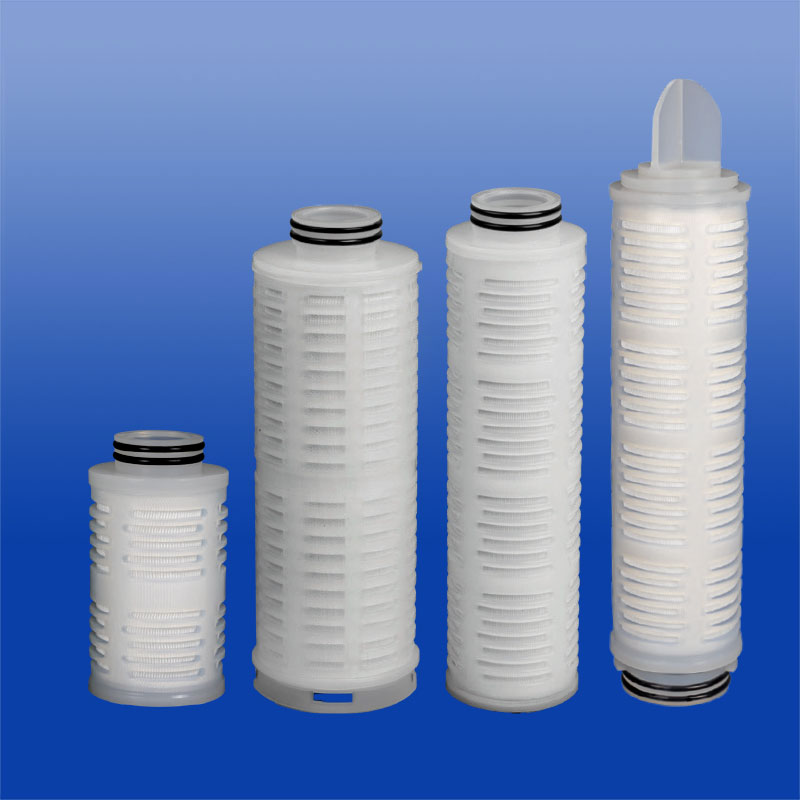

BTF Series Filter Cartridges are constructed of hydrophobic polytetrafluoroethylene (PTFE) membrane, PTFE support netting, and ultra-pure perfluoroalkyl (PFA) hardware. This provides the ultimate in chemical compatibility, durability, and extraordinarily low extractables. And furthermore provides high retention efficiency and long service life with aggressive chemicals.
Features
- Ultimate chemical compatibility.
- 100% integrity tested.
- High flow rate with low pressure drop.
Applications
- Pharmaceutical products
- Solvents, strong acids & bases
- Microelectronic process fluids
- Chemically aggressive fluids
- Fine chemicals
Specifications
| Dimension | |
| Outer Diameter | 69mm (2.72”) & 83mm (3.3”) |
| Lengths | 4″, 10”, 20”, 30”, 40” 83mm OD available only in 10” length |
| Filtration Area | |
| HP | 1.12m2/69-10” 1.63m2/83-10” |
| EP | 0.9m2/69-10” 1.51m2/83-10” |
| Material of Constructions | |
| Media | Hydrophobic PTFE |
| Support Layer | PFA/PTFE |
| Cage/Core/End cap | PFA |
| Seal Material Options | E-FKM, F-FKM |
| Performance | |
| Max. Operating Temperature | 160° C (320° F) |
| Max. dP (forward) | 5 bar (73 psi) @ 20°C (68°F) 2 bar (30 psi) @ 120°C (248°F) |
| SIP | 135°C (275°F) @ 30 minutes recommended |
Wetting Precautions
- PTFE membrane is naturally hydrophobic. If used with high surface tension fluids, such as aqueous solutions, it’s neces-sary to pre-wet the filter cartridge. Alternatively, specify a pre-wetted cartridge.
- Pre-wetted cartridges are shipped in a solution of preserved ultrapure water. At the time of installation, drain the liquid and rinse the filter with 20L (per 10” unit) ultrapure water or service fluid before use.
- If pre-wetting is required, soak the cartridge in an aqueous solution of 60% isopropanol (IPA) for 10 minutes. Remove cartridge from the IPA and soak in ultrapure water for 10 minutes. Or, rinse for 10 minutes at 7.5 LPM per 10” length. The cartridge is now ready for service.
Quality Assurance
- Individually tested for integrity.
- Filter cartridges are manufactured in a clean room environ-ment using Good Manufacturing Practices under an ISO9001:2015 registered Quality Management System.
- Cartridges are individually serialized and have full materials traceability.
Food Contact Compliance
- Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR
- Meet the requirements of European Commission Directives ((EU) 10/2011)
Flow Rate
Dimensions
Order Information
