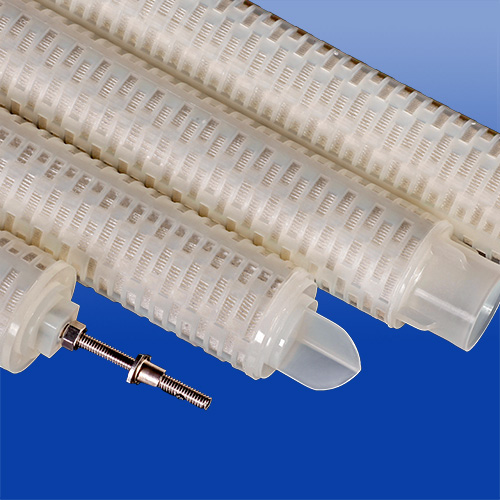

BSF Series Pleated Filter Cartridges are back washable, designed especially for using in power plant condensate water. The purity polypropylene material construction ensures a most widely chemical campatibility. Large surface area and low pressure drop increase filters’ life, lengthening back washable cycles.
Features
- Backflushable filter, longer life
- Multiple layers, high dirt holding capacity
- All polypropylene construction ensures a wide chemical compatibility
- Absolute construction, high effeciency of particle removal
Applications
- Seawater desalination
- Steel mill water treatment
- Nuclear condensate polishing
- Fossil condensate polishing
Specifications
| Dimension | |
| Outer Diameter | 66mm , 69mm |
| Length | 40”, 50”, 60”, 70” |
| Material of Constructions | |
| Media | PP |
| Support | Polypropylene |
| Connection Type | Thread |
| Performance | |
| Max. Operating Temperature | 82℃(179.6°F) |
| Max. Operating DP | 2.8 bar (41psi)@ 65℃(149°F) |
Quality
- Filter Cartridges are manufactured in a clean room environment
- Manufactured according to ISO9001:2015 certified Quality Management System
Dimensions
Order Information
