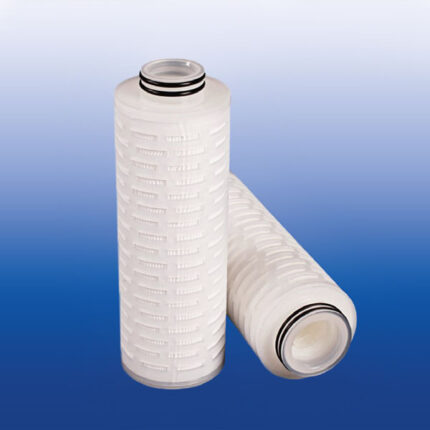

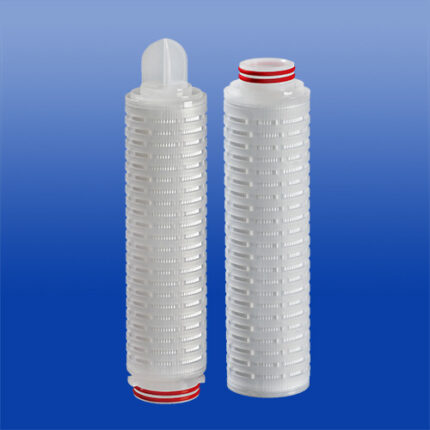

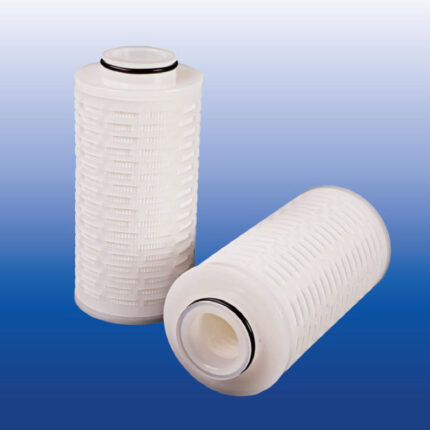

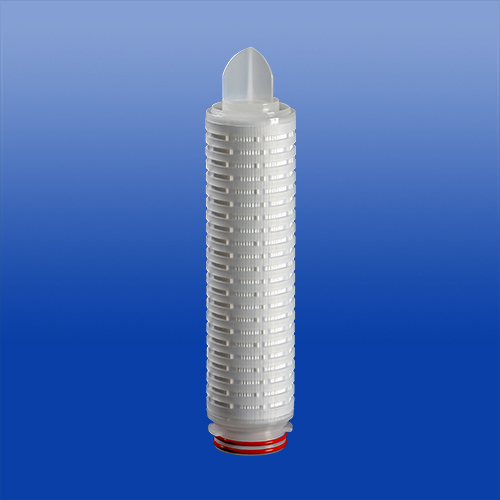

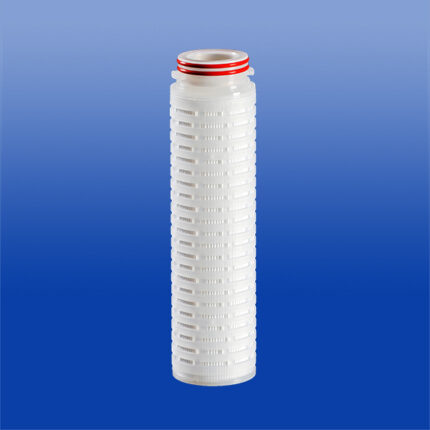

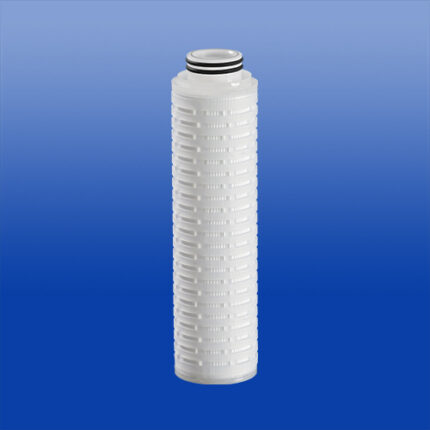

BS Series Pleated Filter Cartridges are made of glass fiber. The pleated glass fiber filter cartridges are highly efficient, good for the pre-filtration of gas and vent, and can be effectively used in a variety of industrial applications. The cartridge offers a large surface area for high flow rates and high dirt holding capacity, also reduces labor costs with less changing of the filters.
Features
- Low pressure drops and high flow rates
- High filtration efficiency, up to 96%
- Excellent chemical compatibility
- High dirt holding capacity and long service life
Applications
- Food & Beverage
- Chemicals & Oil
- Pharmaceutical
- Process Water Treatment
- Pre-filtration of vent & gas
Specifications
| Dimension | |
| Outer Diameter | 69mm (2.72”) |
| Lengths | 5”, 10”, 20”, 30”, 40” |
| Material of Constructions | |
| Media | GF |
| Support Layer | Polypropylene |
| Cage/Core/End cap | Polypropylene |
| Seal Material Options | Silicone, EPDM, NBR, FKM, E-FKM |
| Performance | |
| Max. Operating Temperature | 80°C (176°F) |
| Max. dP (forward) | 4 bar (58 psi) @ 20°C (68°F) 2 bar (29 psi) @ 80°C (176°F) |
Quality Assurance
- Manufactured in a clean room environment
- Manufactured according to ISO9001:2015 certified Quality Management System
Flow Rate

Order Information
