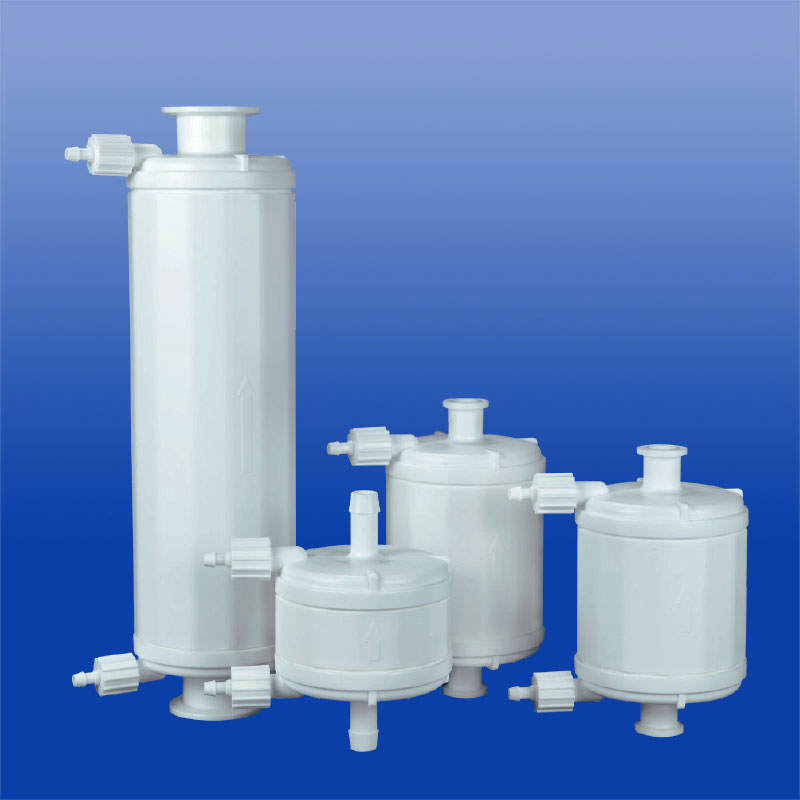

Bioaxenic®-T series capsule filters are designed for sterile filtration processes and have reliable and stable sterilization performance, which is very suitable for small batch validation and laboratory critical validation.
Bioaxenic®-T is composed of hydrophobic polytetrafluoroeth-ylene (PTFE) membrane. The product shows excellent resistance to organic, inorganic chemical corrosion and natural hydrophobic characteristics, which have a wide range of applications such as: sterile filtration of compressed gas, vent air, strong corrosive and oxidizing liquids, organic solvents etc.
Features
- Validated and reliable bacteria retention capability
- High flow rate and low extractables
- Available in various connector types
- Excellent chemical compatibility
- Resistance to corrosion, oxidation, organic solvents
Applications
- Compressed gas or vent air sterilization filtration filtration
- Solvent and disinfectant filtration
- Strong corrosive and oxidizing liquid sterilization filtration
- Inlet and outlet filtration of single-use bioreactor
- Inlet and outlet filtration of single-use mixing and storage bag
Specifications
| Dimension | |
| Outer Diameter | 87mm |
| Length / Filtration area | 2″(65mm) / 0.12m² 4″(103mm) / 0.22m² 5″(118mm) / 0.26m² 10″(266mm) / 0.65m² |
| Material of Constructions | |
| Media | Hydrophobic PTFE |
| Support | PP |
| Cage/Core/End cap | PP |
| Seal Material Options | Silicone |
| Use Condition | |
| Max. Operating DP | 2.5Bar(36psi) @ 20℃(68℉ |
| Integrity Test Parameters(with PTB) | |
| Bubble Point (BP) | ≥1100mbar@IPA: Water 60:40 |
| Water Instrusion (WIT) | ≤1 ml / min@2760mbar |
Quality
- Comply with 21CFR210.3(b)(6) on “Non fiber” release regulations
- 100% integrity tested
- Validated with Brevundimonas diminuta (ATCC 19146) at107/cm2 (0.22μm)
- Endotoxin: Comply with USP<85>, endotoxin content <0.25EU/ mL
- Biocompatibility：Comply with USP<87>USP<88>
- Autoclaving: 125℃-30min-5 Cycles
Order Information
