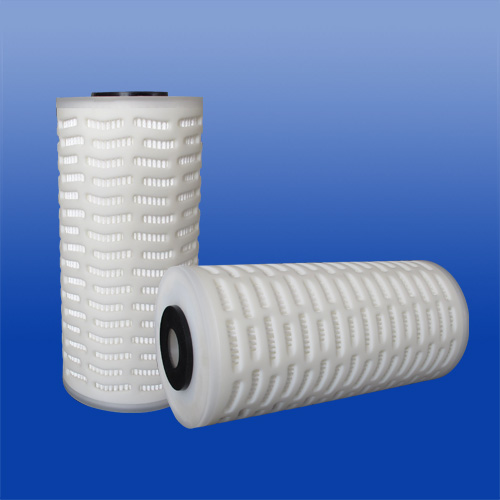

BHF115 Series Pleated Filter Cartridges are available for different types of filter medias and pore sizes, with high performance polypropylene depth media, glass fiber media, imported hydrophilic absolute rated PES membrane. This filter can replace the traditional depth big blue filters for big blue housings to improve the output and reduce the cost.
Features
- Broad range of applications due to wide chemical compati-bility
- Available for different types of filter medias and pore sizes
- High flow rates at low pressure drops
Applications
- Drinking Water
- Water Filtration
- RO Pre-Filtration
- Deionized Water Systems
Specifications
| Dimension | |
| Outer Diameter | 115mm, 28mm |
| Length | 248mm(9.75″), 250mm(9.87″), 254mm(10″), 508mm(20″) |
| Material of Constructions | |
| Media | PP/GF/PES |
| Support | Polypropylene |
| Core/Cage/End cap | Polypropylene |
| Seal Material Options | Silicone, EPDM |
| Performance | |
| Max. Operating Temperature | 80° C (176°F) |
| Max. Operating DP | 4 bar (58 psi) @ 20°C (68°F) 2 bar (29 psi) @ 80°C (176°F) |
| Recommended Change out DP | 2.2 bar (32psi) @ 20℃(68°F) |
Quality
- Filter Cartridges are manufactured in a clean room environment
- Manufactured according to ISO9001:2015 certified Quality Management System
Food Contact Compliance
- Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR
- Meet the requirements of European Commission Directives (EU10/2011)
Flow Rate
Order Information
