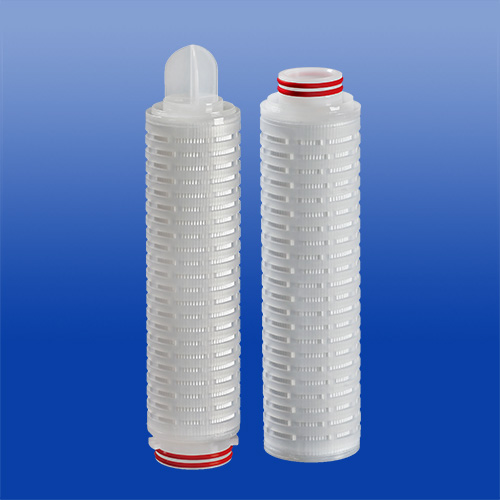

BGE Series Filter Cartridges feature all-polypropylene construction in an economically-efficient design suitable for a wide range of process applications. The large effective filtration area allows for high flow rates and long service life. Available in nominal retention ratings from 0.1 to 50 microns.
Features
- 100% polypropylene construction provides inertness and broad chemical compatibility.
- Media composition is structured for nominal ratings of from 0.1 to 75 microns.
- Available in all common end cap configurations.
Applications
- Foods and beverages
- RO pre-filtration
- Process waters
- Wastewaters
- Fine chemicals
- Plating solutions
Specifications
| Dimension | |
| Outer Diameter | 69mm (2.72”) |
| Lengths | 5”, 10”, 20”, 30”, 40” |
| Material of Constructions | |
| Media | Polypropylene |
| Support Layer | Polypropylene |
| Cage/Core/End cap | Polypropylene |
| Seal Material Options | Silicone, EPDM, NBR, FKM, E-FKM |
| Performance | |
| Max. Operating Temperature | 80°C (176°F) |
| Max. dP (forward) | 4 bar (58 psi) @ 20°C (68°F) 2 bar (29 psi) @ 80°C (176°F) |
Quality Assurance
- Filter cartridges are manufactured in a clean room environ-ment using Good Manufacturing Practices under an ISO9001:2015 registered Quality Management System.
- Full materials traceability is documented for all finished lots.
Food Contact Compliance
- Materials of construction comply with USFDA regulations for safe use with food and beverages.
- Complies with European Directive EC1935/2004.
- Halal certified.
Flow Rate
Order Information
