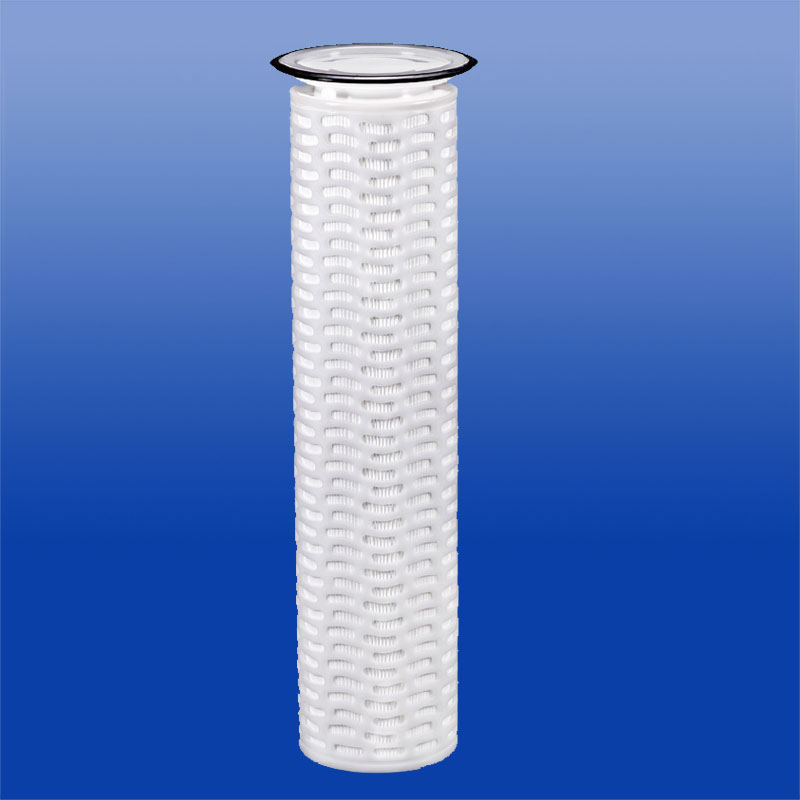

The large 6inch(154mm) diameter BC series filter cartridges with unique sealing device adjust to fit into most existing size 1 and size 2 bag filter housing. The multiple layers with depth pleated design provide higher removal efficiency and longer service life than other cartridges of equal efficiency. Customers no longer have to choose between cartridge and bag technologies. The cartridge with in-to-out flow design ensures that the unwanted particles are trapped with the element. One BC filter replaces few standard 10″ filter cartridges, BC Series element offer higher surface area than conventional cartridge or bag technologies to reduce the operating costs and making change out quickly and easily for critical applications.
Features
- Available in Economic/Nominal/absolute structure, particle removal rating from 0.5 to 120 micron
- 100% polypropylene components provide wide chemical compatibility, suitable for using in a variety of fluids
- Multiple pleated layers media constrution with high filtration area
- Easily to retrofit into existing size 1 and size 2 bag housing
- Large 154mm diameter cartridge suitable for high flow/high contaminant applications
- The inside-to-outside fluid flow ensures the unwanted particles are trapped with the element
- Lower filtration costs due to fewer filter elements,lower labor costs due to less cartridges change-outs
Applications
- Food & Beverage
- RO Pre-Filtration
- Process Water
- Automotive Industry
- Sea water desalination
- Drinking water
- Machinery&Equipment
Specifications
| Dimension | |
| Outer Diameter | 6”(154mm) |
| Length | 16”(370mm) =Size 1 32”(634mm) =Size 2 32”(660mm) =Size 2L |
| Material of Constructions | |
| Media | PP |
| Support | PP |
| End Cap | PP |
| Adjustable Flange | PP |
| Seal Material Options | EPDM , FKM , NBR |
| Performance | |
| Max. Operating Temperature | 80℃(176℉) |
| Max. Operating DP | 3.4 bar (49 psi)@ 25℃(77℉) |
| Recommended Change out DP | 2.4 bar (35 psi)@ 20°C(68℉) |
Quality
- Filter Cartridges are manufactured in a clean room environ-ment
- Manufactured according to ISO9001:2015 certified Quality Management System
Food Contact Compliance
- Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the
- US Code of Federal Regulations 21CFR
- Meet the requirements of European Commission Directives ((EU) 10/2011)
- Halal Certified
Dimensions
Order Information
